RAM® Power + Data Dock for Tab Active5 & 3 with Speaker Box (RAM-HOL-SAM61PDU)

Name: RAM® Power + Data Dock for Tab Active5 & 3 with Speaker Box (RAM-HOL-SAM61PDU)
Brand: RAM Mounting Systems T/A National Products Inc

RAM® Power + Data Dock for Tab Active5 & 3 with Speaker Box (RAM-HOL-SAM61PDU)

SKU:RAM-HOL-SAM61PDU

Ex. Tax: $433.00 NZD

$433.00 NZD

Sale Sold out

Product variants

Quantity

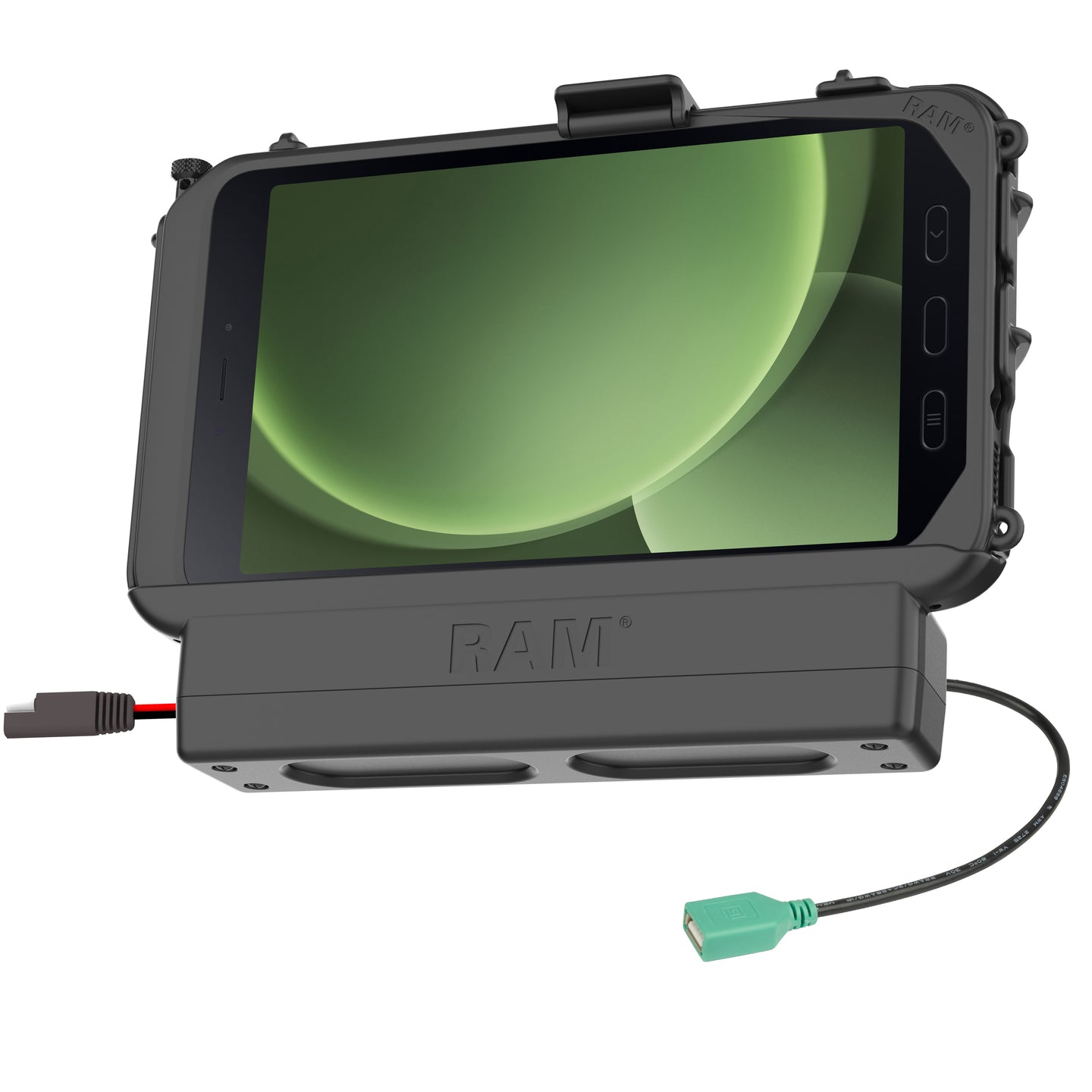

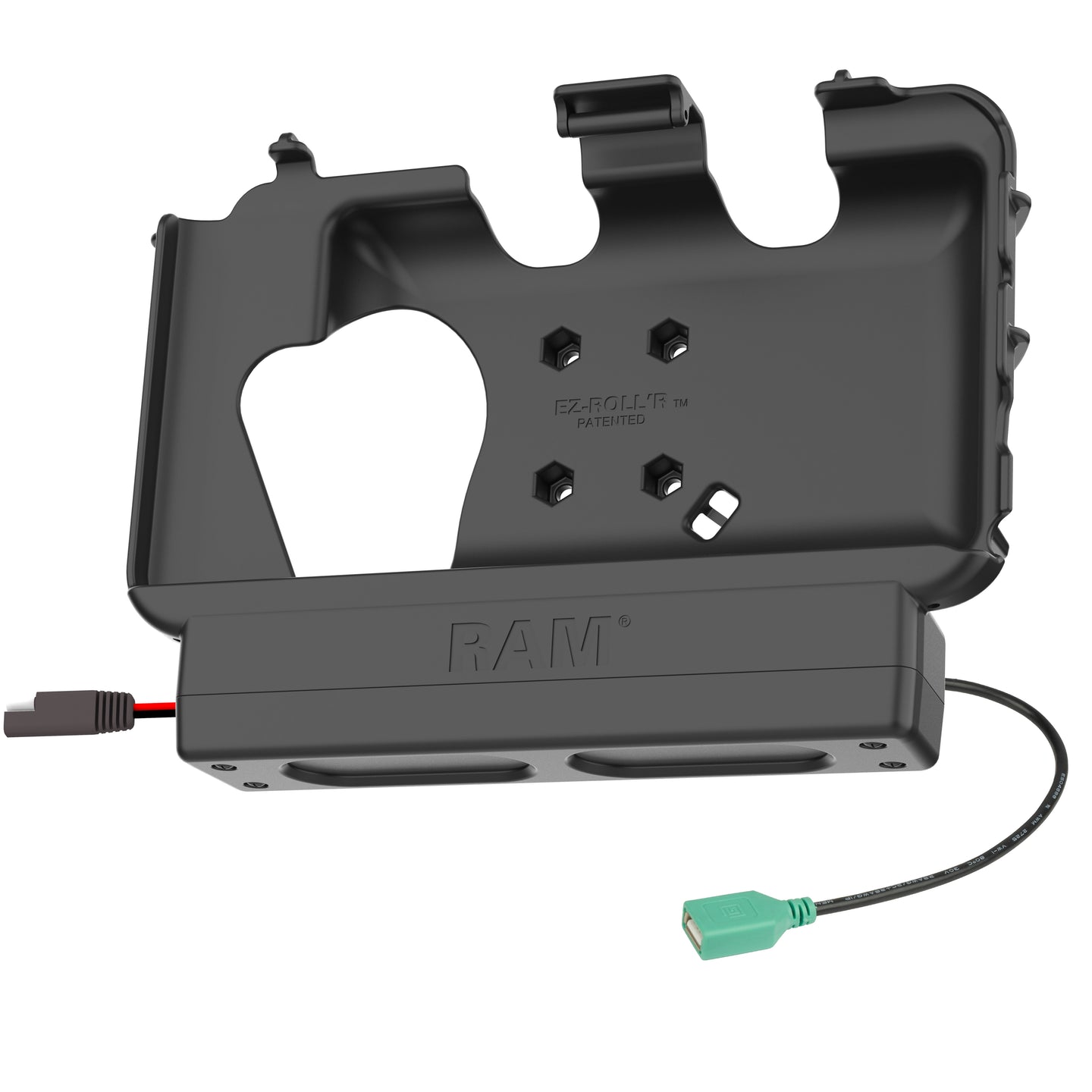

This powered dock for the Samsung Tab Active5, Tab Active3 and 2 retains all the same capabilities as the other RAM® EZ-Roll'r™ powered docks for the Tab Active5/3/2, with an added dual speaker integrated into the bottom of the dock for amplified audio while on the road. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Additional cavity in the back of the dock allows room for the GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

Features

RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector

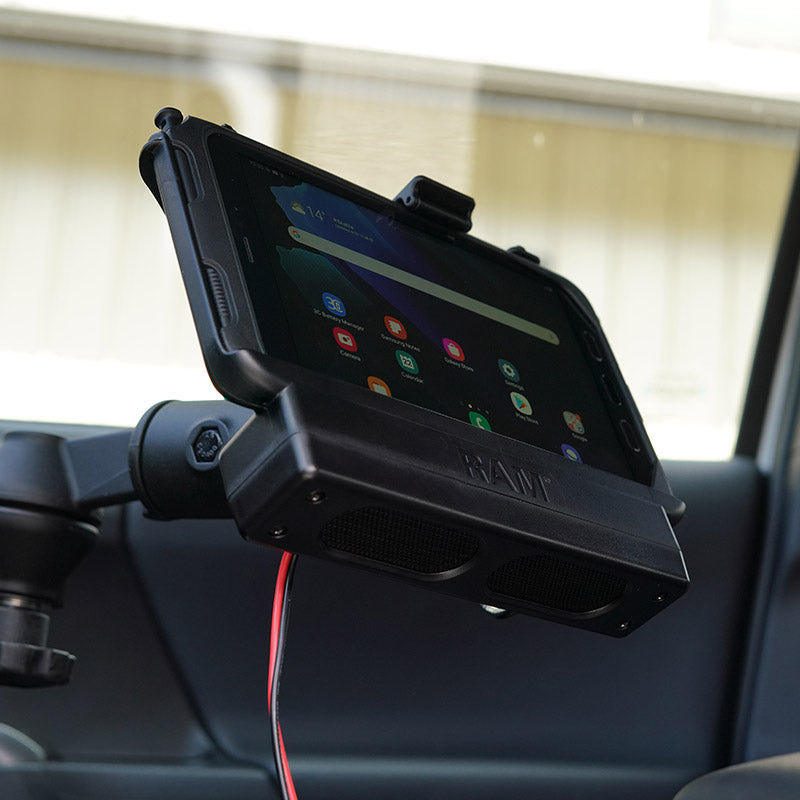

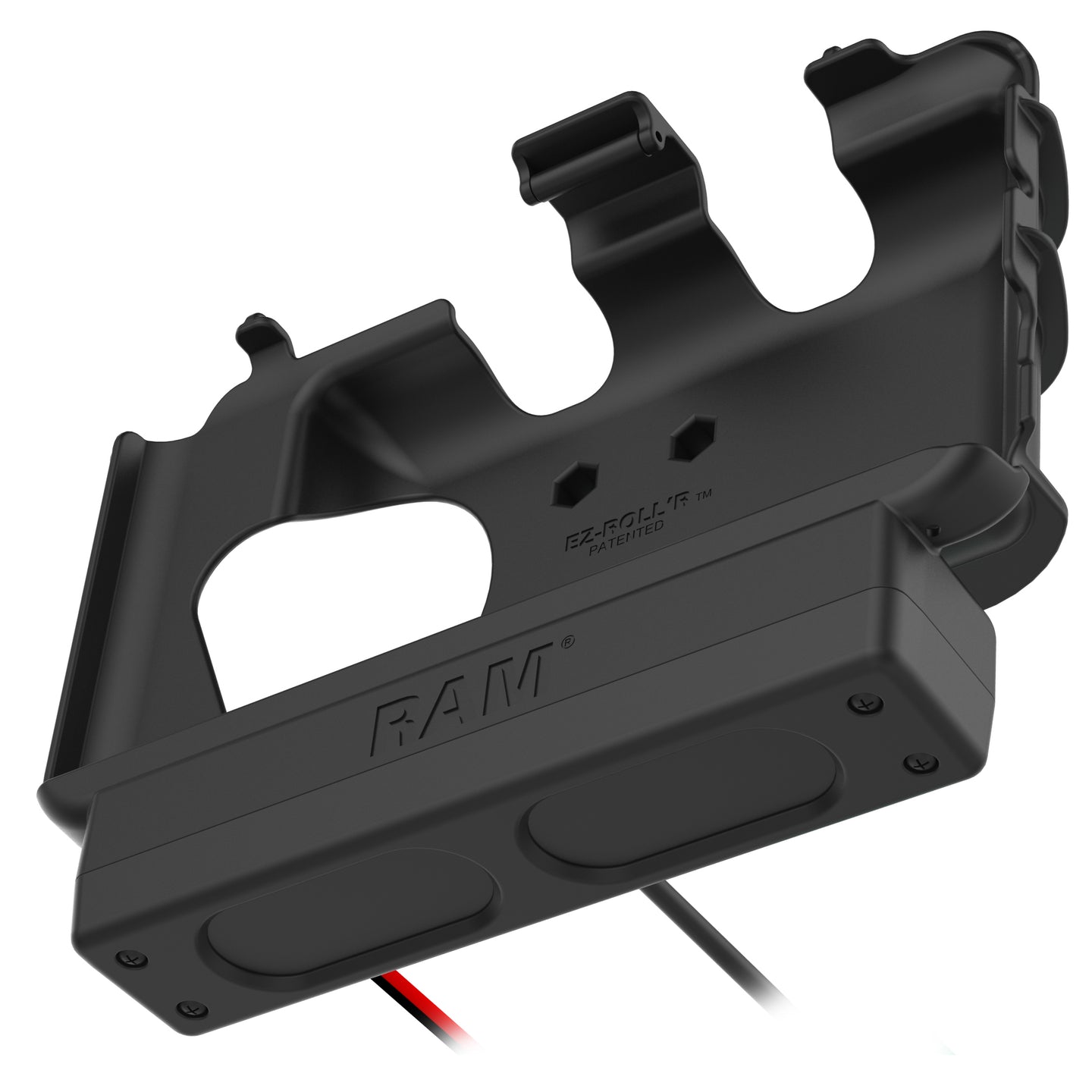

Integrated dual speakers on the bottom of the dock for amplified audio
Power delivered via mUSB connector; connect a single input device via USB-A connector

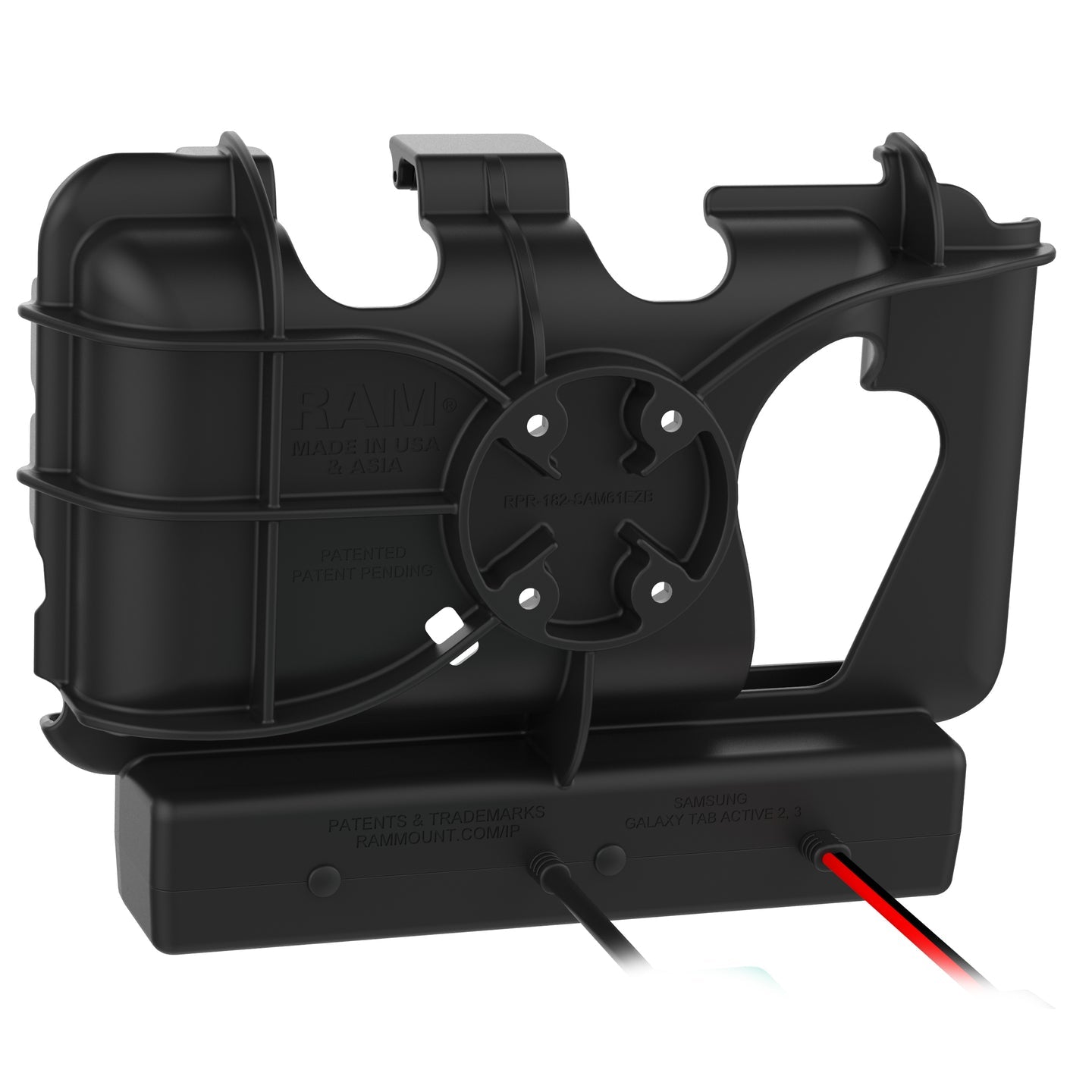

Compatible with RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Backed by a 3-year warranty

Tech Specs

Speaker Specifications: Max volume level: 103dB @100mm
Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
Input Voltage: 10-28VDC
Input Connector: Power: Hardwire Charger with SAE Connector, Data: (1) USB Type A Female
Input Cable Length: 1.9 Meters
Output Connector: USB 1.1 Type A
Output Cable Length: 220mm
Peripheral Output: 500mAh
Transfer Speed: 12Mbps
Regulatory: SAE J-1113, Integrated Short Circuit Protection
Certifications: FCC, CE, RoHS, WEEE, E-Mark
Warranty: 3 year warranty
Material: High strength composite
Packaging Type: Poly Bag
Weight: 0.94 lb

Additional InformationThis product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.

Compatibility

Samsung: Tab Active5, Tab Active3, Tab Active2

Additional InformationThis product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
