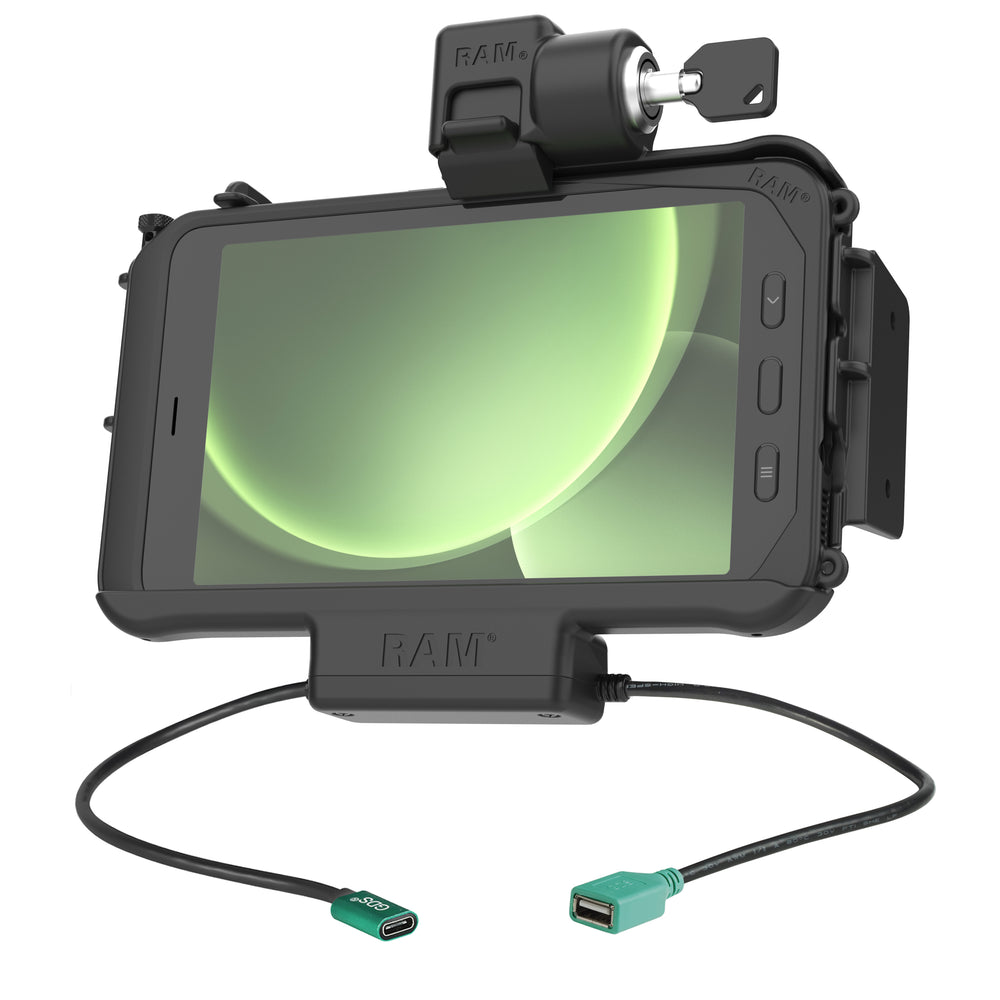

RAM® Locking Modular Power + Single USB Dock for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPKLN-1AU)

RAM® Locking Modular Power + Single USB Dock for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPKLN-1AU)

SKU:RAM-HOL-SAM58CPKLN-1AU

Ex. Tax: Regular price Ex. Tax: $283.00 NZD
Regular price Sale price $283.00 NZD
Sale Sold out

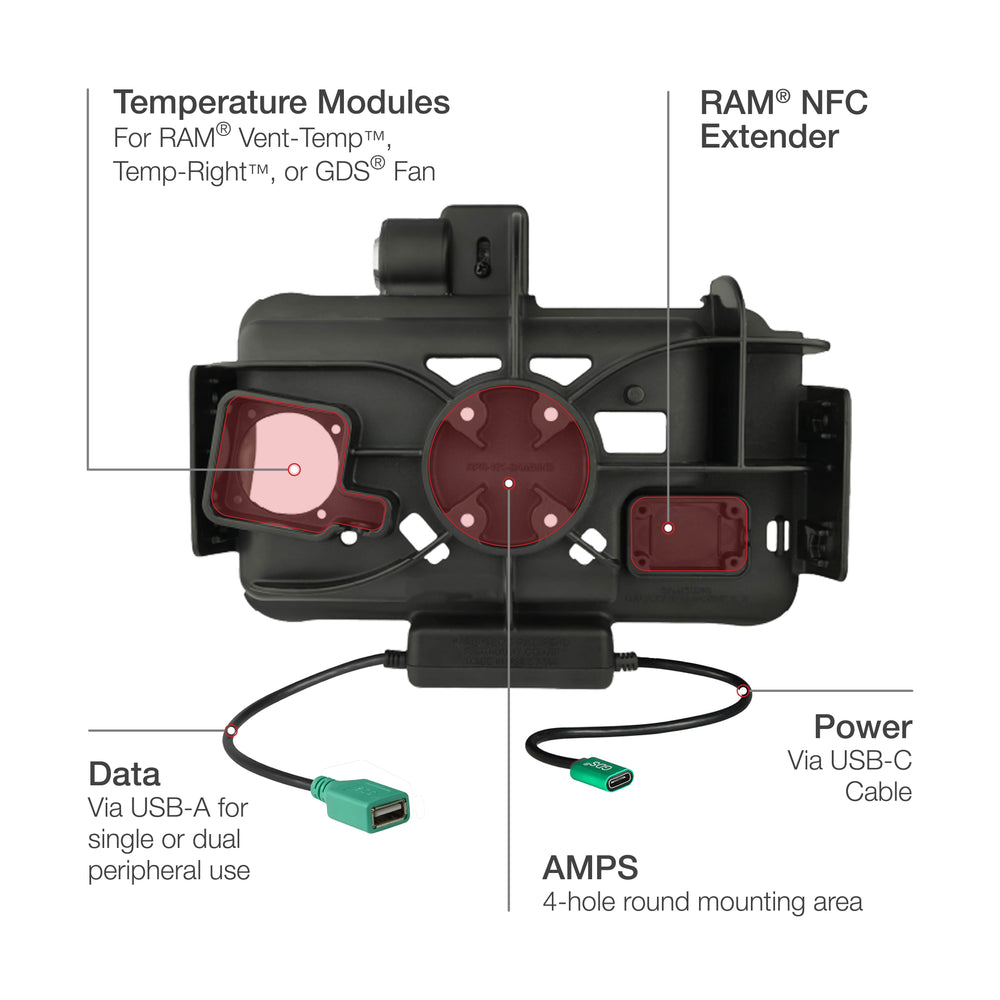

The RAM® Locking Modular Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts€”simply dock the device for a seamless charging experience. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

Tech Specs

  • Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Input Voltage: 5.3-5.4VDC
  • Output Voltage: 5VDC
  • Power Output: 500mA
  • Input Connector: USB Type-C Female
  • Input Cable Length: 250mm
  • Output Connector: USB 1.1 Type A
  • Output Cable Length: 250mm
  • Peripheral Output: 500mAh
  • Transfer Speed: 12Mbps
  • Warranty: 3 year warranty
  • Weight: 1.35 lb
  • Additional Information: This dock is not compatible with the GDS® Hand-Stand™.

Compatibility

  • Samsung: Tab Active5, Tab Active3

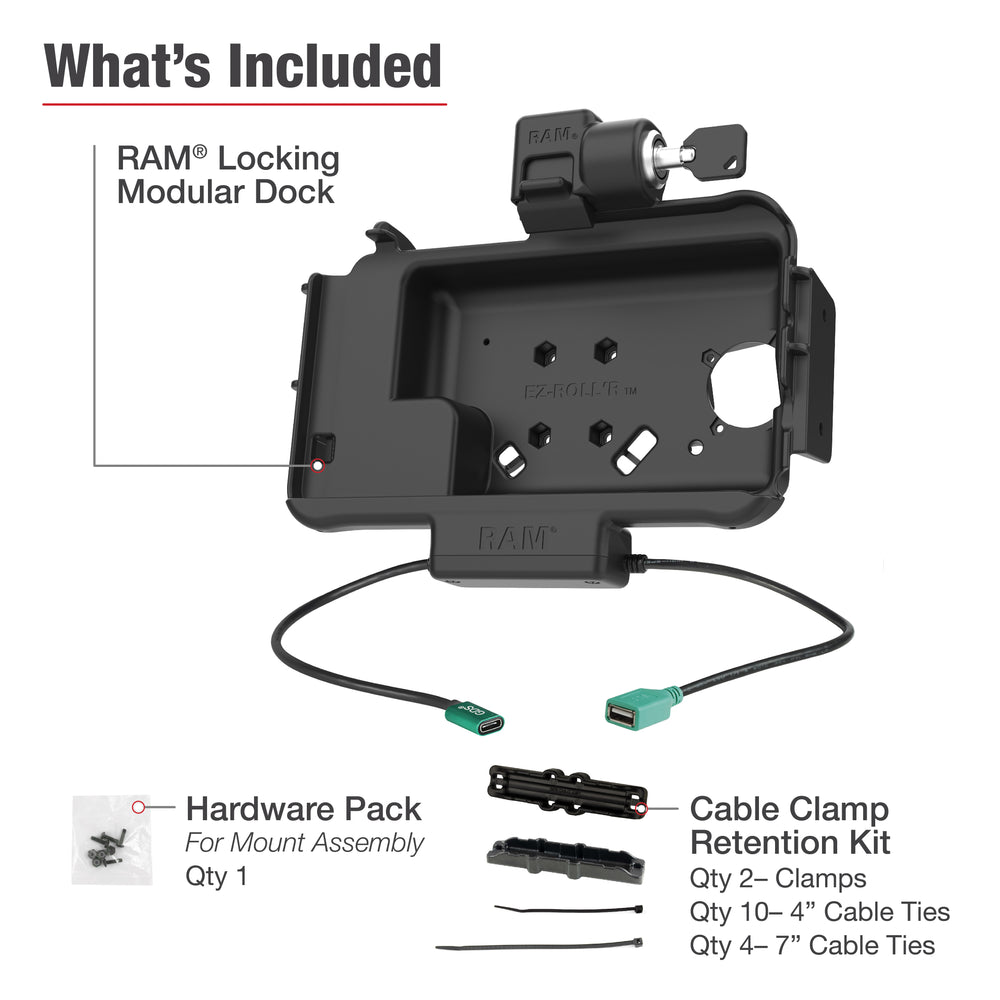

Package Content

  • 1 x RAM® Locking Modular Power + Single USB Dock for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPKLN-1AU)
