RAM® Combo-Locking Power + Data Dock for Tab Active5 Pro & 4 Pro (RAM-HOL-SAM57CPCL-1AU)

RAM® Combo-Locking Power + Data Dock for Tab Active5 Pro & 4 Pro (RAM-HOL-SAM57CPCL-1AU)

SKU:RAM-HOL-SAM57CPCL-1AU

Ex. Tax: Regular price Ex. Tax: $321.00 NZD
Regular price Sale price $321.00 NZD
Sale Sold out

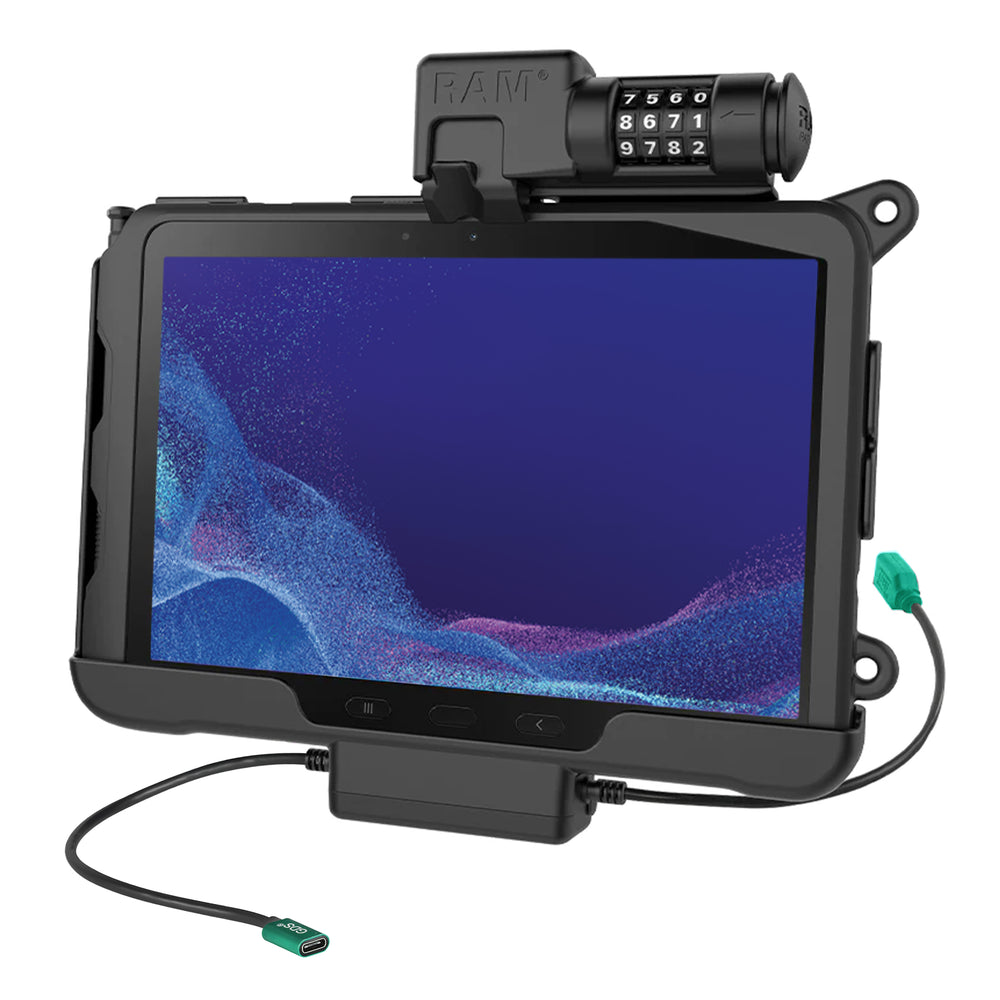

This power cradle for the Samsung Galaxy Tab Active5 Pro & 4 Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a combination lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-A female pigtail, cable clamp, and zip ties.

Features

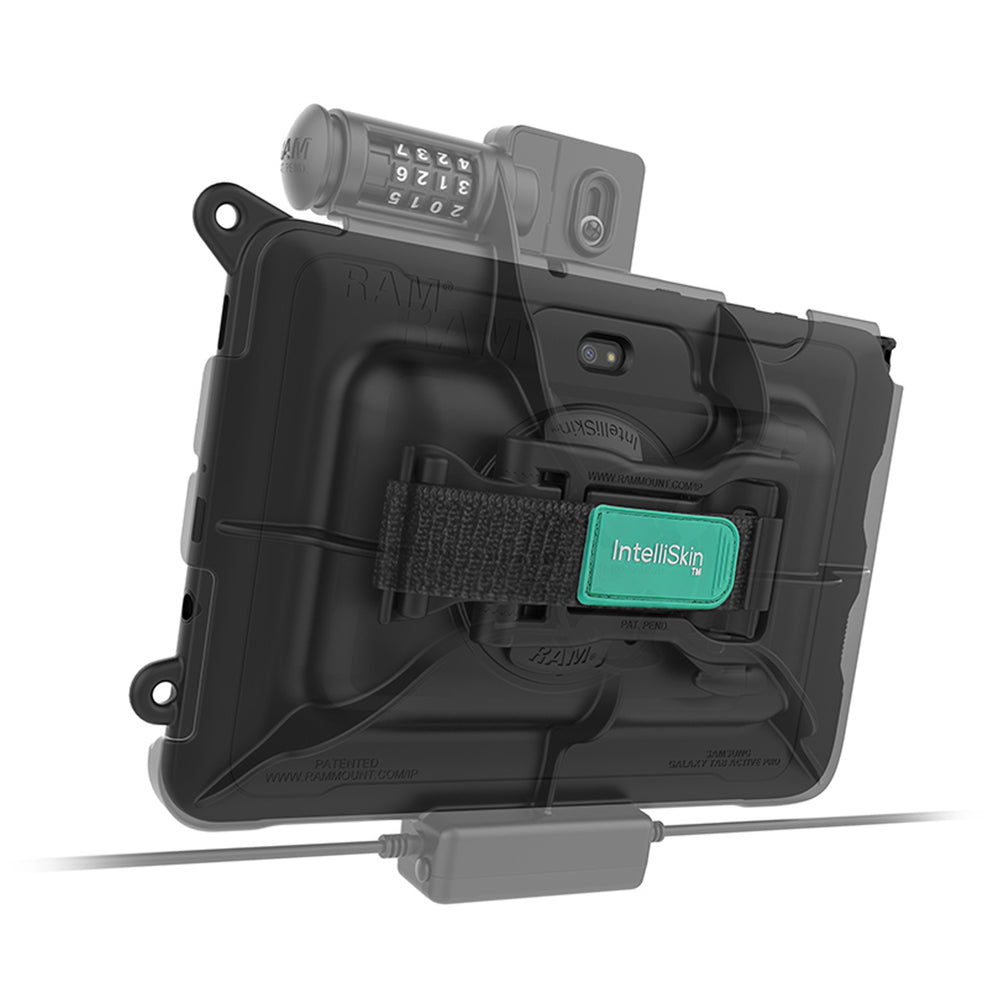

  • Combination locking powered dock designed for Samsung Galaxy Tab Active5 Pro and Tab Active4 Pro with factory Samsung case or RAM® Skin™, powered via integrated pogo pin connector

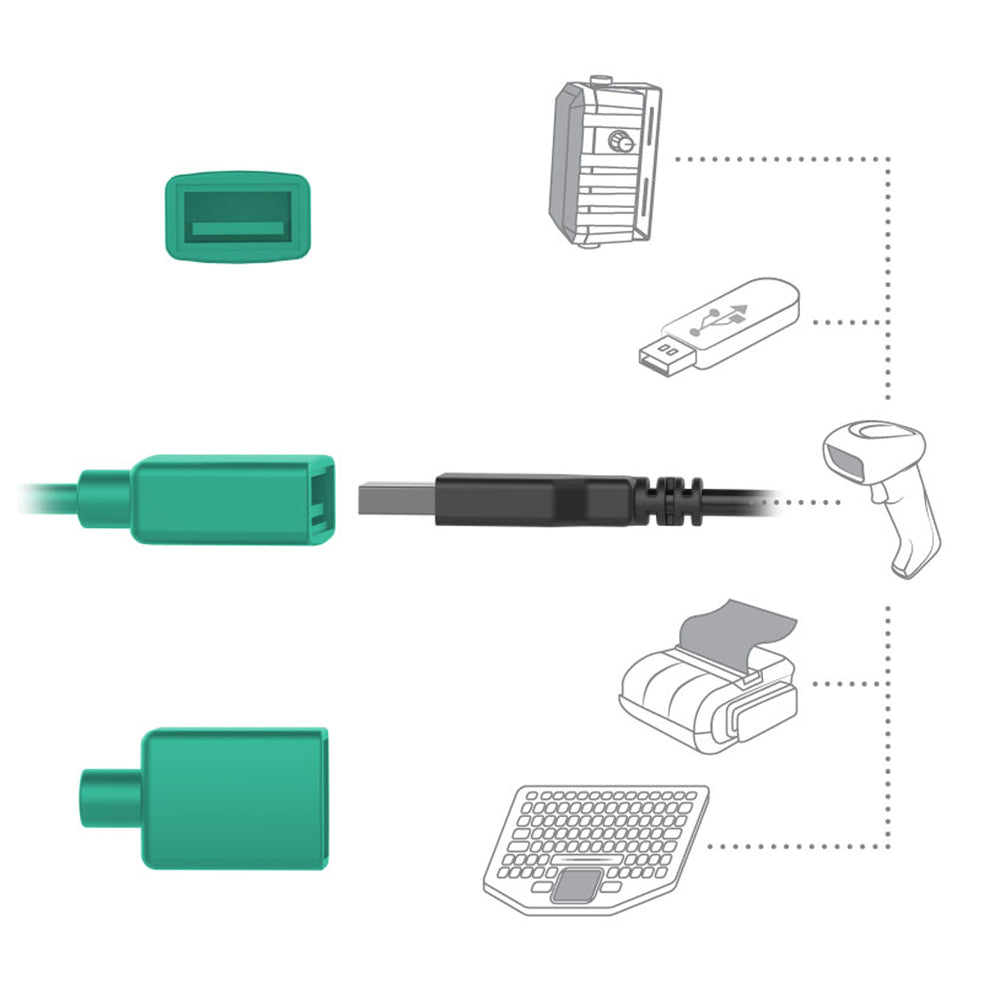

  • Powered through USB-C connector (Non-Power Delivery charger required) with USB-A port supporting a single input device
  • RAM® Mounts Compatible™ with AMPS hole pattern components
  • Constructed from high-strength composite materials for maximum durability and reliability in demanding environments
  • Backed by a 3-year manufacturer warranty

Tech Specs

  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Input Voltage: 5.3-5.4VDC
  • Output Voltage: 5VDC
  • Power Output: 500mA
  • Input Connector: USB Type-C Female
  • Input Cable Length: 250mm
  • Output Connector: USB 1.1 Type A
  • Output Cable Length: 250mm
  • Peripheral Output: 500mAh
  • Transfer Speed: 12Mbps
  • Warranty: 3 year warranty
  • Weight: 1.12 lb
  • Additional Information: This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options.

Compatibility

  • Samsung: Tab Active Pro, Tab Active4 Pro, Tab Active5 Pro

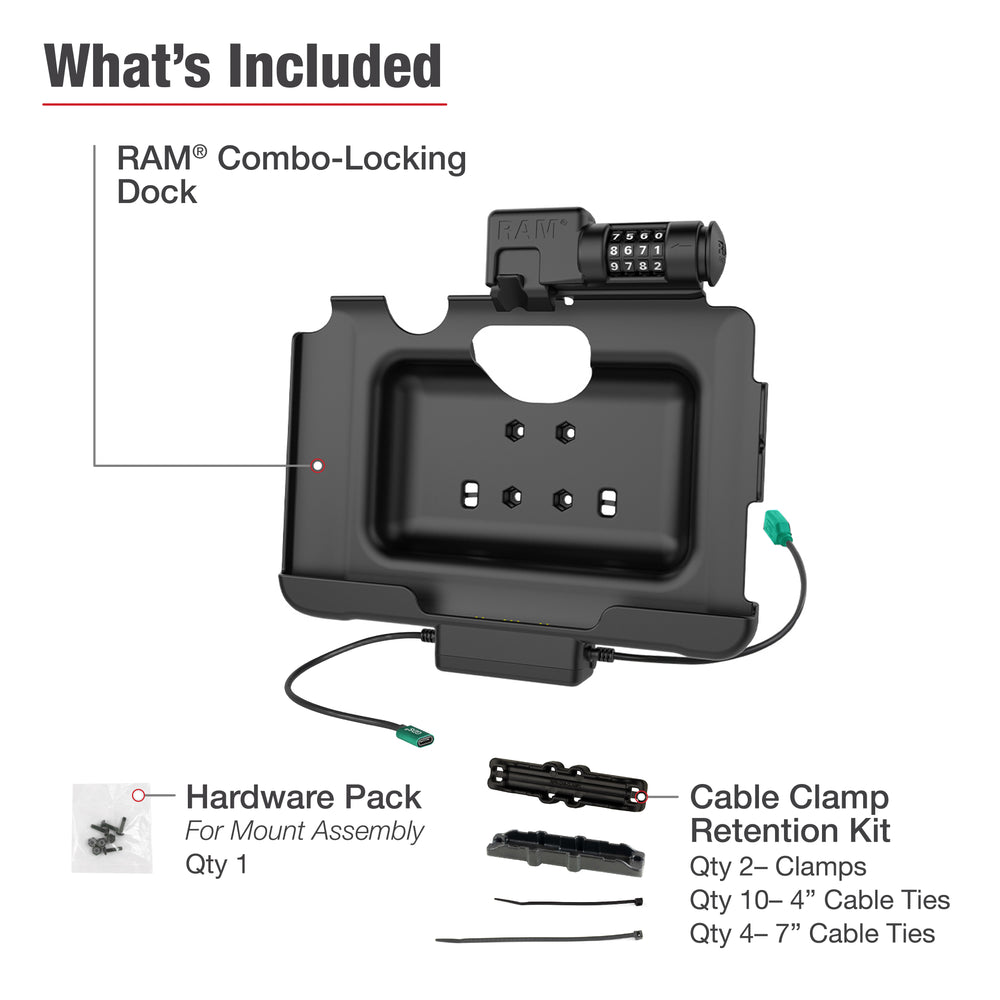

Package Content

  • 1 x RAM® Combo-Locking Power + Data Dock for Tab Active5 Pro & 4 Pro (RAM-HOL-SAM57CPCL-1AU)
