RAM® EZ-Roll'r™ Power & Data Dock for Tab Active5 Pro & 4 Pro (RAM-HOL-SAM52CP-1AU)
RAM® EZ-Roll'r™ Power & Data Dock for Tab Active5 Pro & 4 Pro (RAM-HOL-SAM52CP-1AU)
SKU:RAM-HOL-SAM52CP-1AU
Couldn't load pickup availability

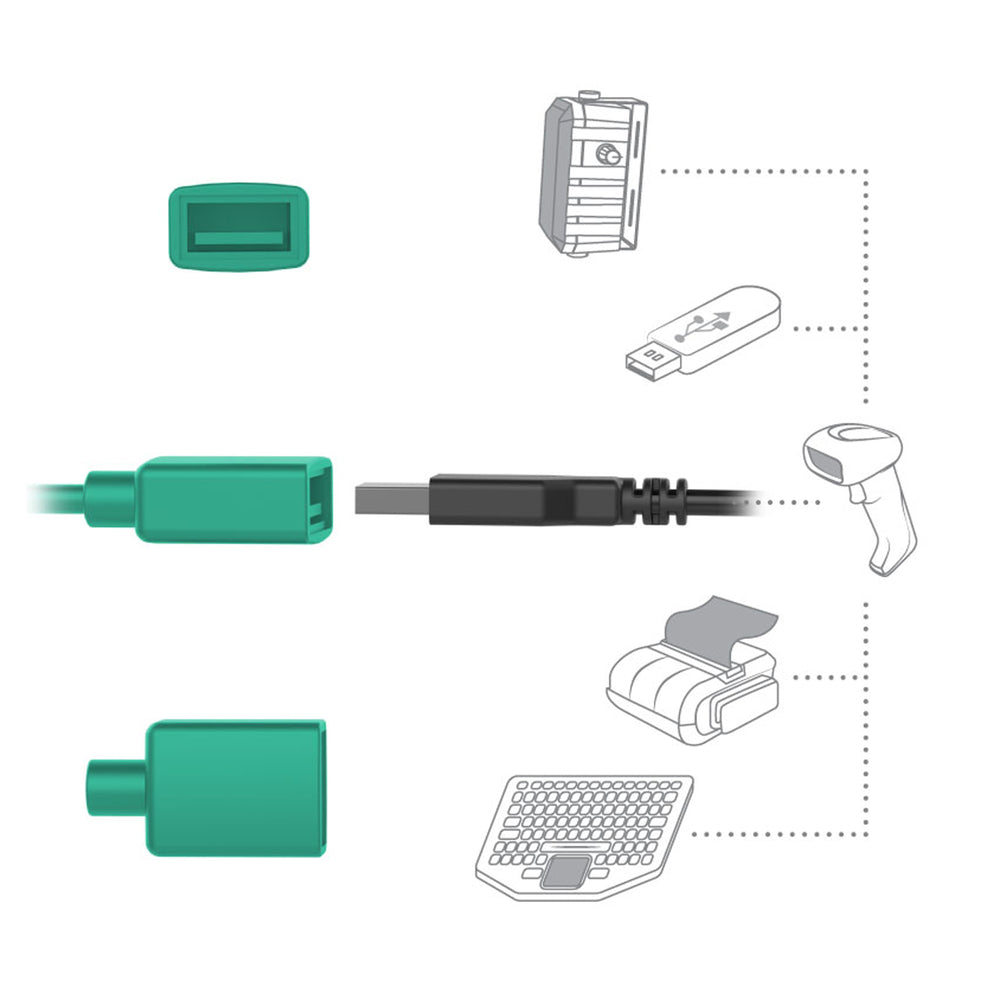

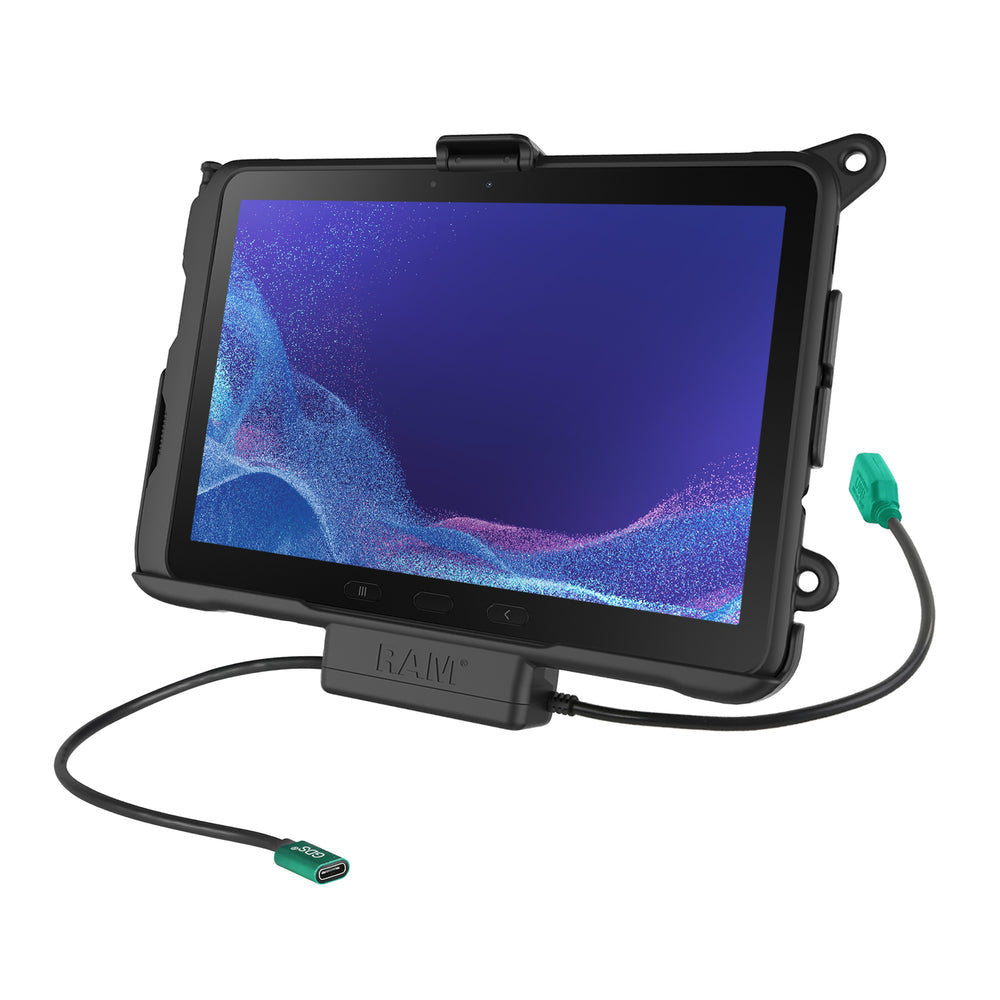

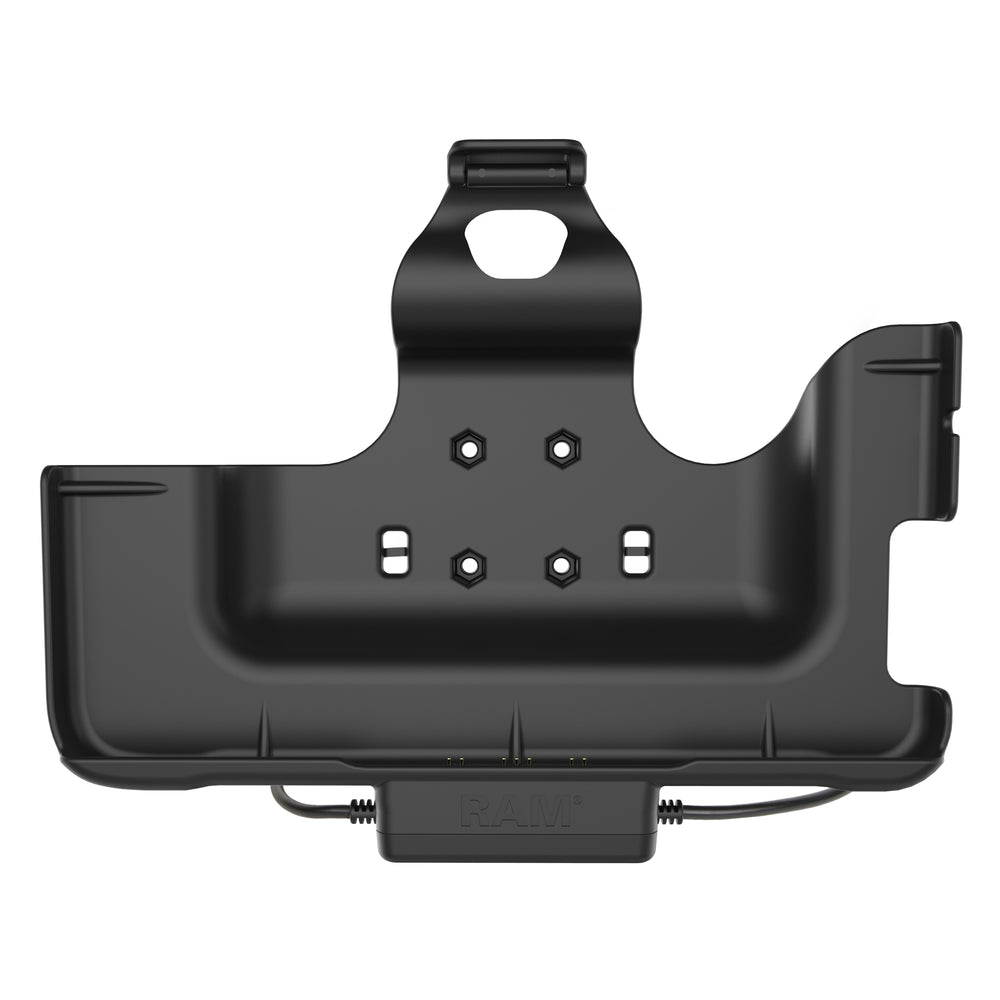

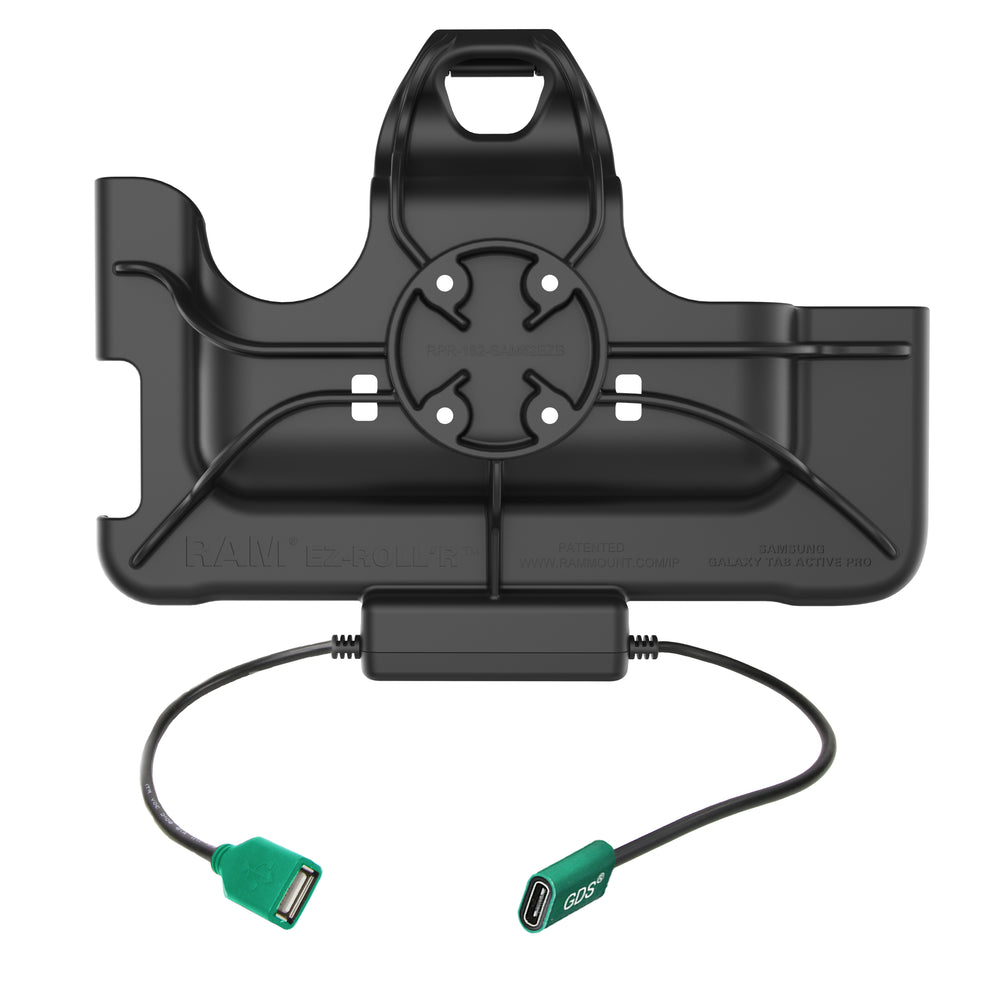

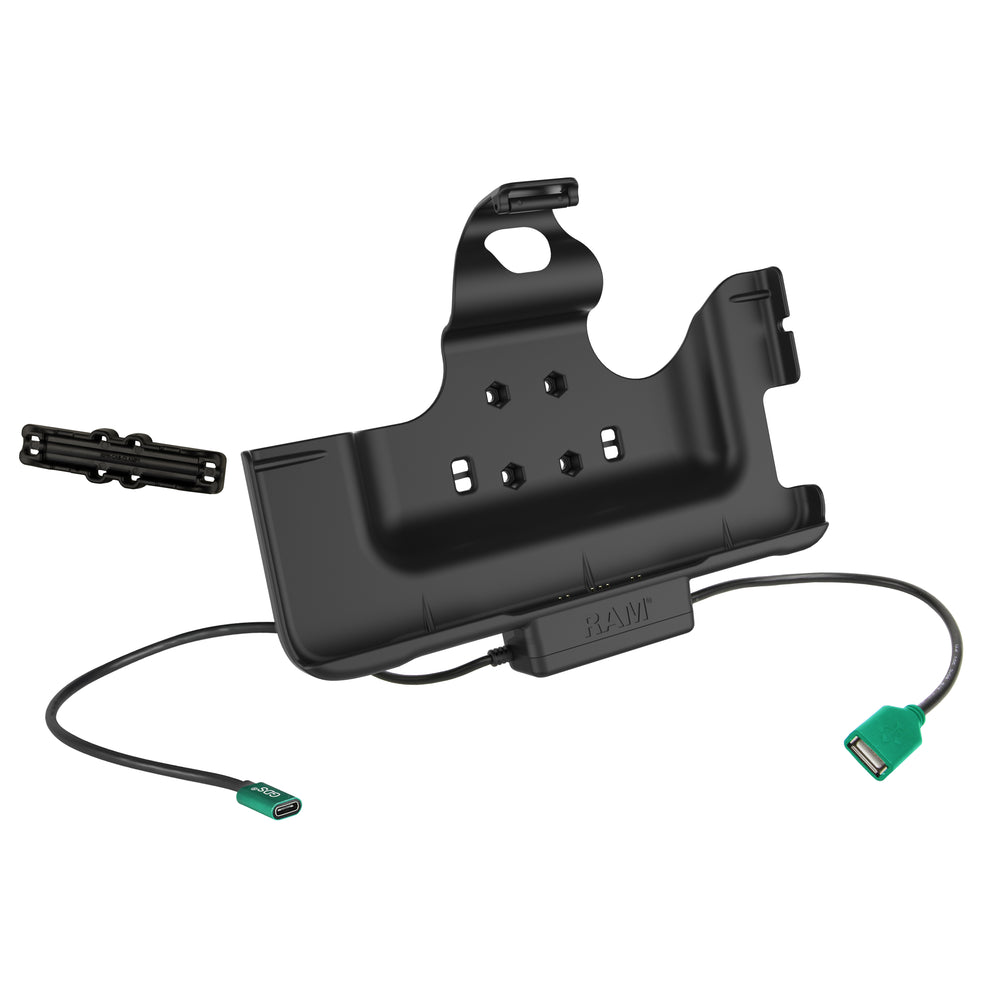

The RAM® EZ-Roll’r™ powered/data cradle for the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a Type-A female pigtail connector for data or to connect a USB peripheral such as a scanner.
Features
Features
- Powered dock provides charging and data transfer for Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro via integrated pogo pin connector
- Designed for light-duty applications and landscape mode use only
- Powered through USB-C connector (Non-Power Delivery charger required) with USB-A port supporting a single input device
- Allows easy one-handed insertion and removal of the device
- Compatible with factory Samsung skin and RAM® Skin™
- Backed by a 3-year manufacturer warranty
Tech Specs
Tech Specs
- Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Input Voltage: 5.3-5.4VDC
- Output Voltage: 5VDC
- Power Output: 500mA
- Input Connector: USB Type-C Female
- Input Cable Length: 250mm
- Output Connector: USB 1.1 Type A
- Output Cable Length: 250mm
- Peripheral Output: 500mAh
- Transfer Speed: 12Mbps
- Warranty: 3 year warranty
- Weight: 0.74 lb
- Additional Information: This holder is intended only for light-duty applications in landscape mode. For heavy-duty applications and/or operating in portrait mode, see locking options. This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options.
Compatibility
Compatibility
- Samsung: Galaxy Tab Active Pro, Galaxy Tab Active4 Pro, Galaxy Tab Active5 Pro

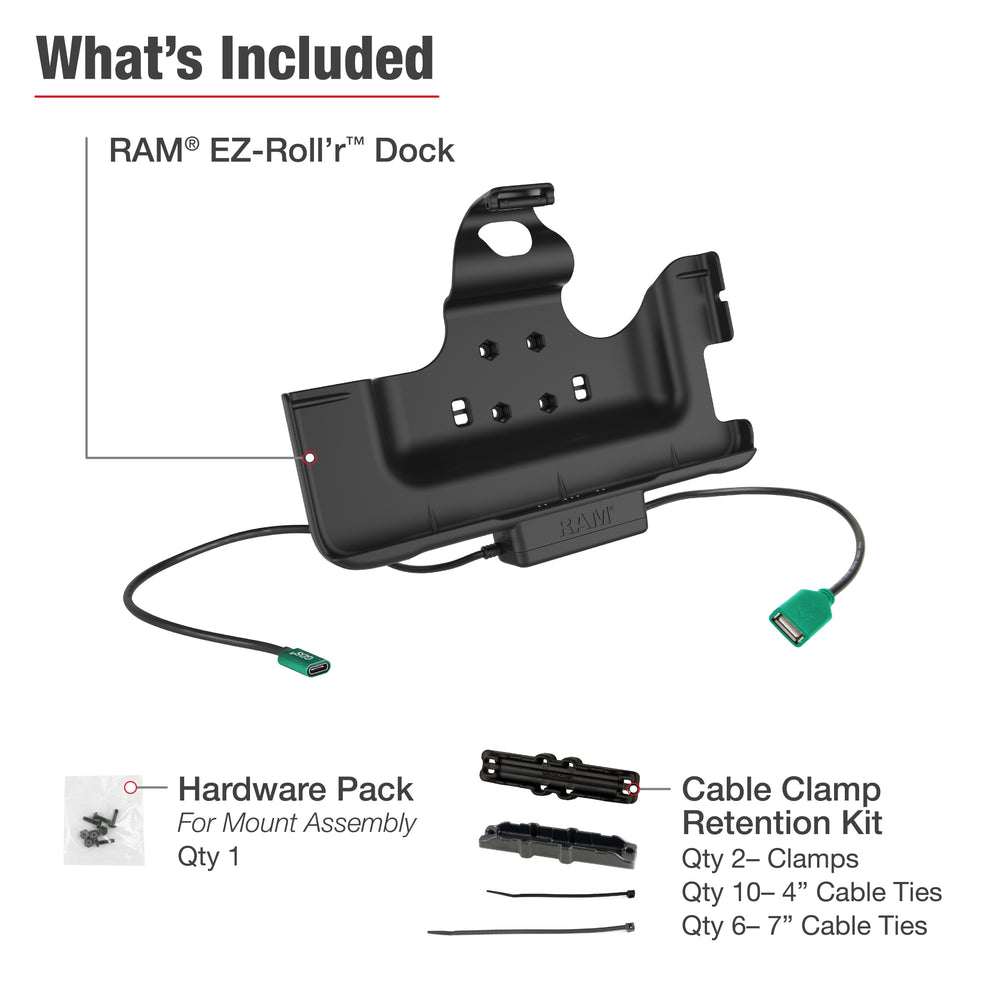

Package Content
Package Content
- 1 x RAM® EZ-Roll'r™ Power & Data Dock for Tab Active5 Pro & 4 Pro (RAM-HOL-SAM52CP-1AU)
