GDS® Uni-Conn™ Powered Dock (RAM-GDS-DOCK-U1CPU)

Name: GDS® Uni-Conn™ Powered Dock (RAM-GDS-DOCK-U1CPU)
Brand: RAM Mounting Systems T/A National Products Inc
SKU: RAM-GDS-DOCK-U1CPU
Price: 161.0 NZD
Availability: InStock

SKU:RAM-GDS-DOCK-U1CPU

Ex. Tax: $161.00 NZD

$161.00 NZD

Sale Sold out

Product variants

Quantity

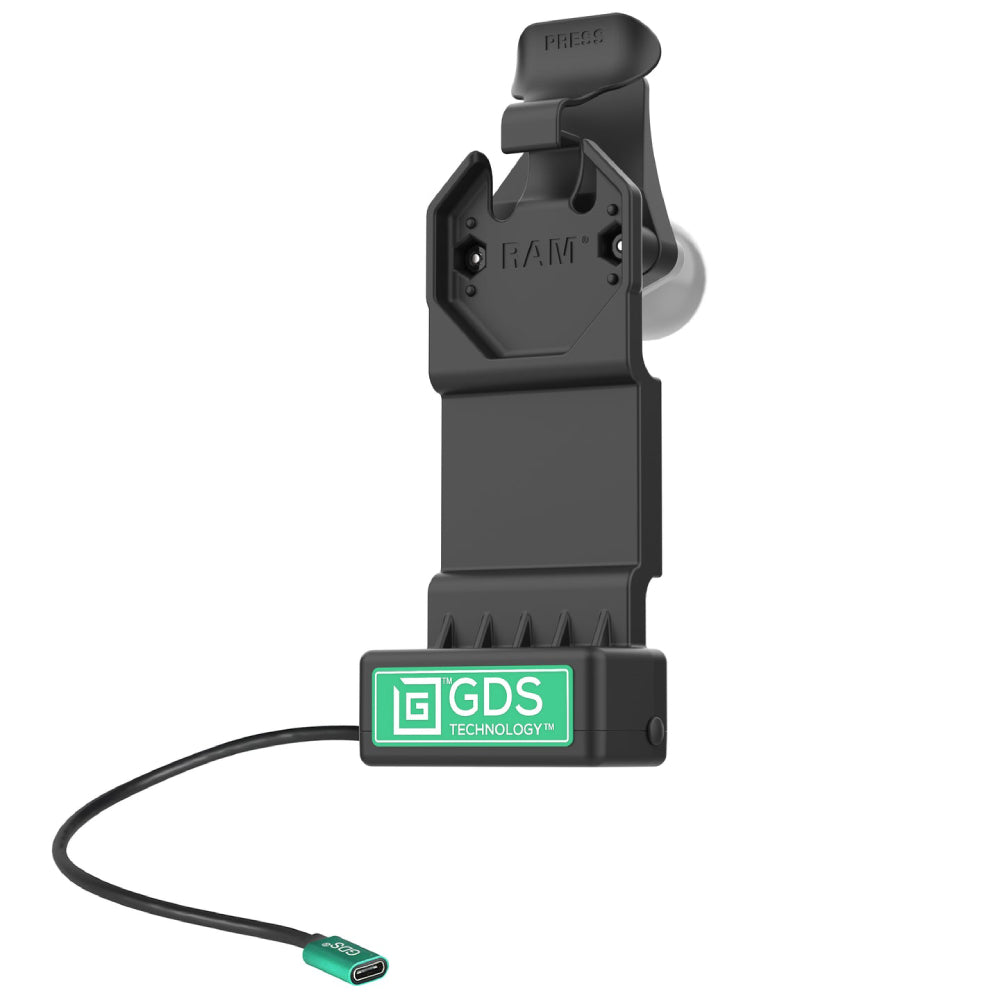

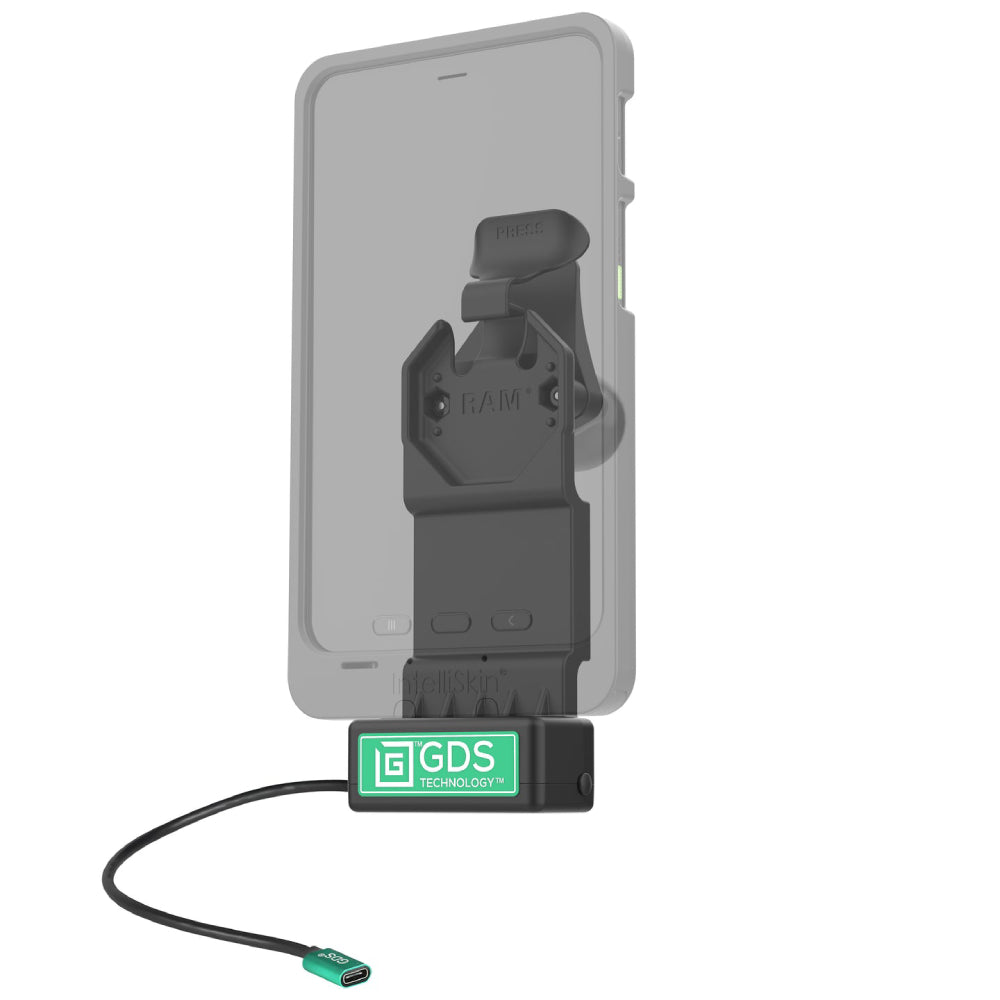

The GDS® Uni-Conn™ Powered Dock (RAM-GDS-DOCK-U1CPU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A 7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. The warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.

Features

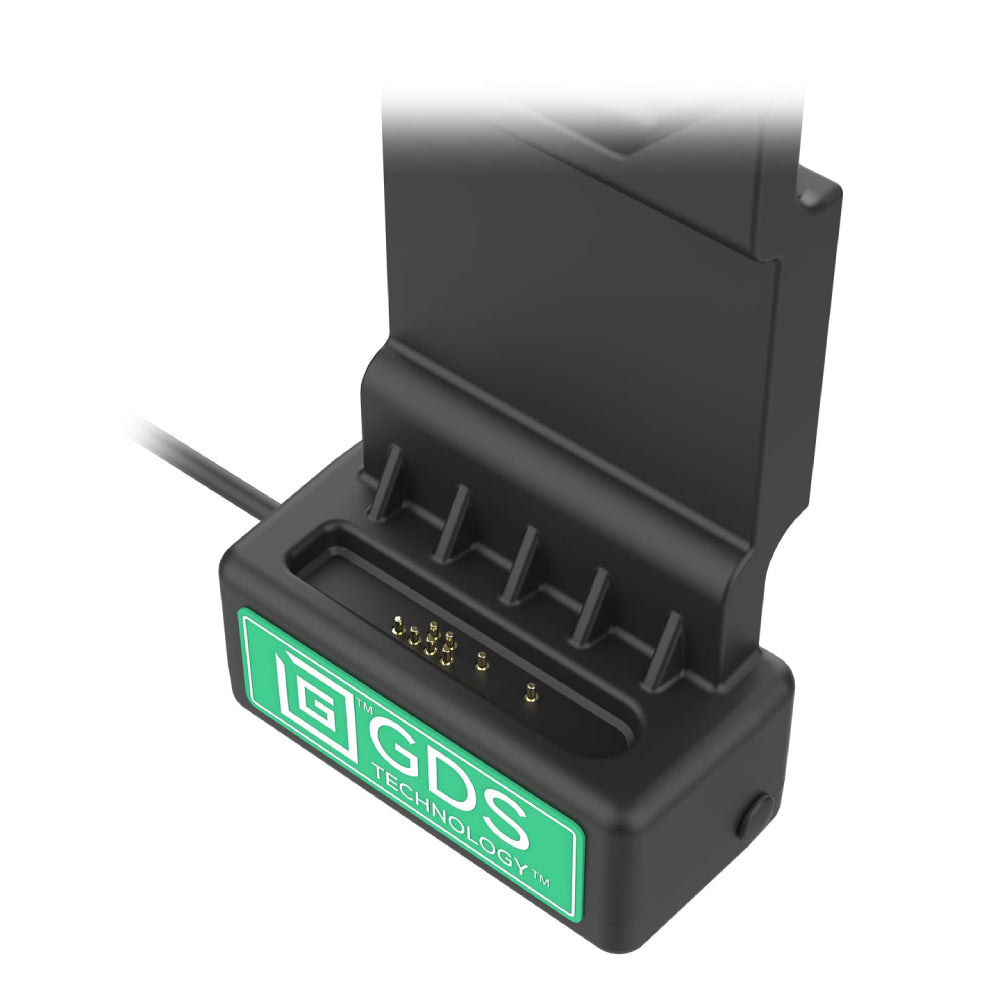

Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging

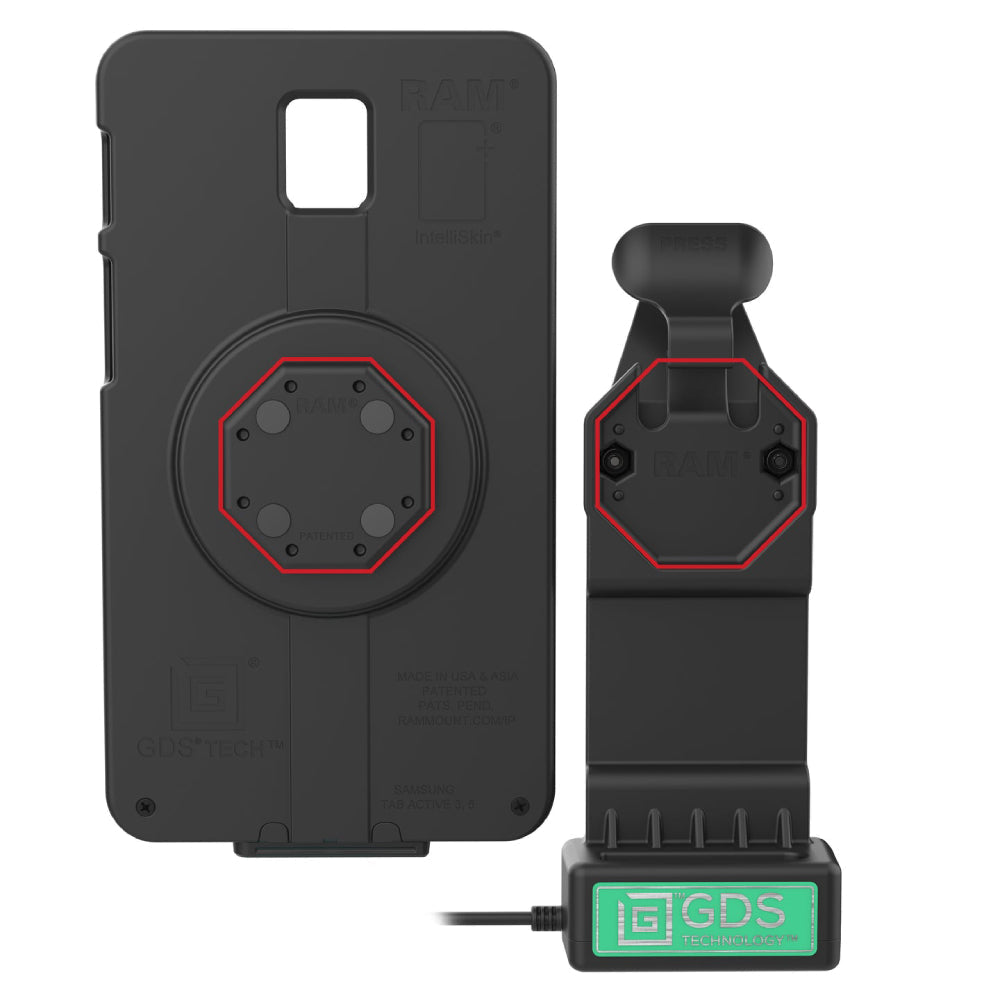

Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
USB Type-C Female connector provides high-speed charging to the dock
RAM® Mounts Compatible™
Backed by a 3-year warranty

Tech Specs

Hardware Included:

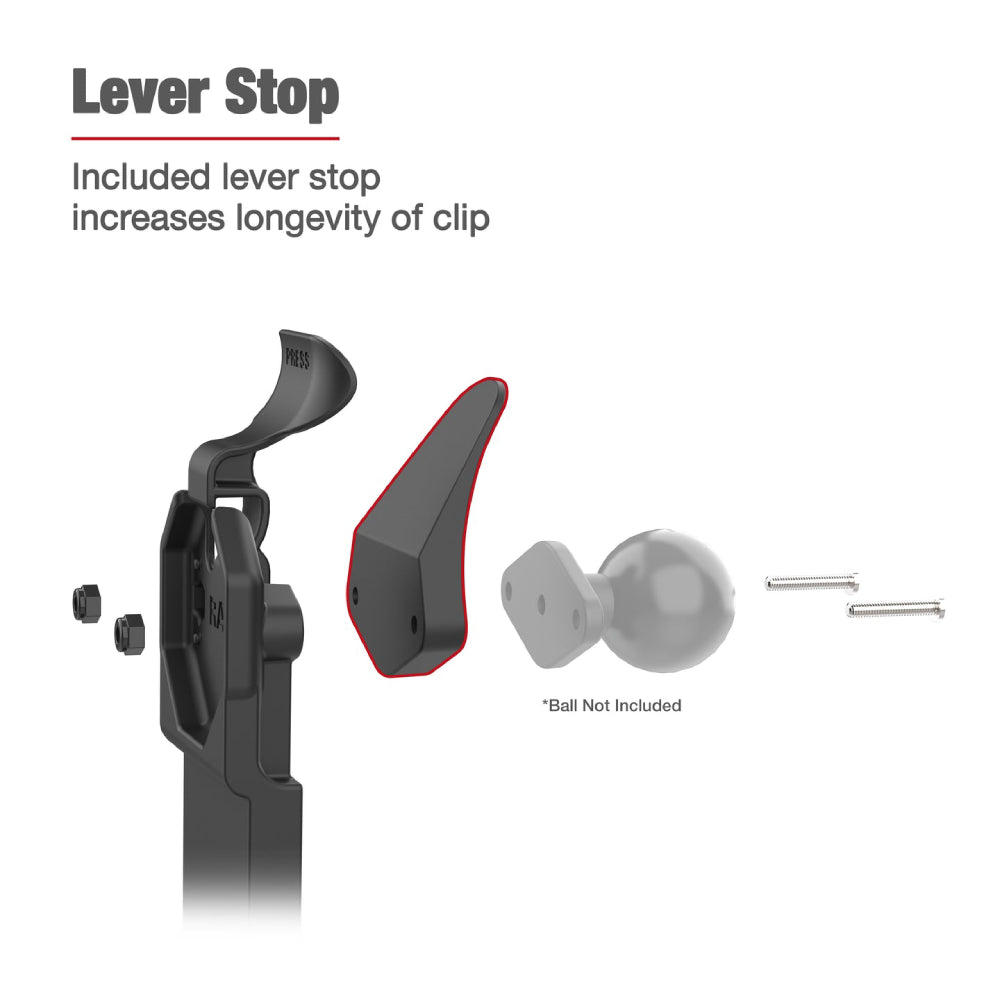

- (1) Lever Stop
- (2) #8-32 x 1" Machine Screws
- (2) #8-32 Nylock Nuts
- (1) Cable Clamp Kit
Product Dimensions:
- Overall Width: 3.16"
- Overall Height: 8.44"
- Overall Depth: 3.03"
Hole Pattern: 2-Hole AMPS: 1.912"
Materials: High strength composite
Packaging Type: Poly Bag
Output Voltage: 5V - 12V @ 3A
Power Output: 15W
Input Connector: USB Type-C
Input Cable Length: 215mm
Warranty: 3 year warranty
Weight: 0.53 lb
Additional Information: The Lever Stop included with this dock is required in order to function properly. The warranty on the dock is void if the dock is used without Lever Stop. GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
