• GDS® Modular 30-64V Hardwire Charger with Female USB Type A Connector (RAM-GDS-CHARGE-V8BU)
1 1

GDS® Modular 30-64V Hardwire Charger with Female USB Type A Connector (RAM-GDS-CHARGE-V8BU)

GDS® Modular 30-64V Hardwire Charger with Female USB Type A Connector (RAM-GDS-CHARGE-V8BU)

RAM-GDS-CHARGE-V8BU
Ex. Tax: $84.00 NZD
$84.00 NZD
Sale Sold out

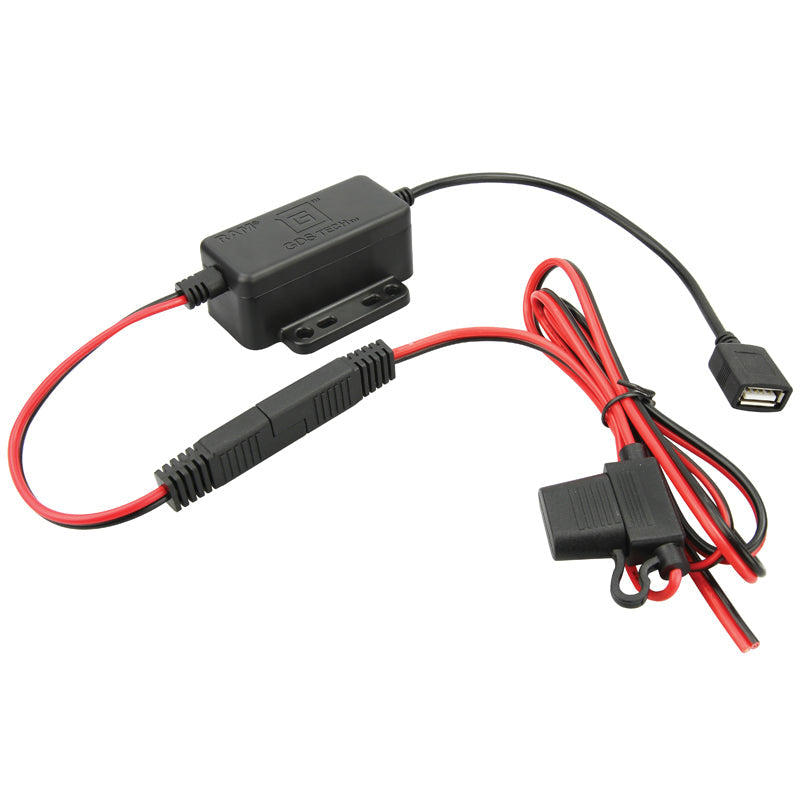

The GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Always Protected. Always Connected.®

Features

  • Hardwire charger includes USB Type-A female connector; 30V-64V input range, 5V output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

Tech Specs

  • Packaging Type: Poly Bag
  • Input Voltage: 30-64VDC
  • Output Voltage: 5-9VDC*
  • Output Current: 2.5A max
  • Input Connector: Female USB Type A
  • Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
  • Output Cable Length: .2 Meters
  • Operating Temperature: -10 degree C to +70 degree C
  • Storage Temperature: -40 degree C to +70 degree C
  • Regulatory: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-11 13-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC
  • Certifications: E-Mark Certification, RCM Certification, IEC/UL 62368-1
  • Warranty: 3 year warranty
  • Weight: 0.32 lb

Package Content

  • 1 x GDS® Modular 30-64V Hardwire Charger with Female USB Type A Connector (RAM-GDS-CHARGE-V8BU)
