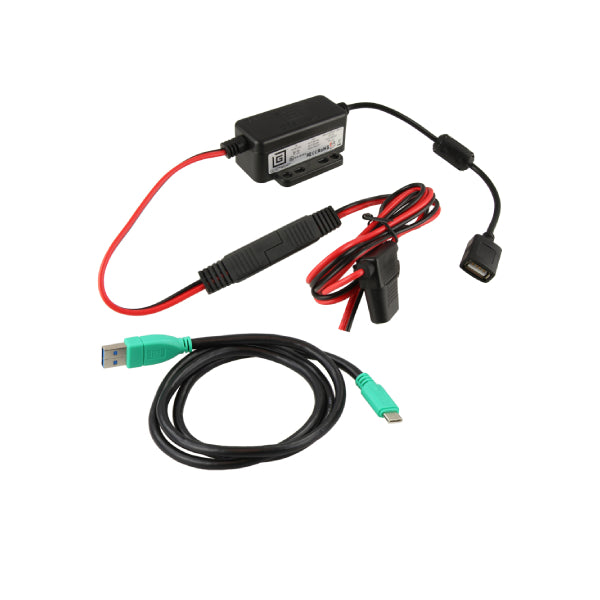

GDS® Modular 10-30V Hardwire Charger with Type-C Cable (RAM-GDS-CHARGE-USBC-V7B1U)

GDS® Modular 10-30V Hardwire Charger with Type-C Cable (RAM-GDS-CHARGE-USBC-V7B1U)

  • $63.80 Ex. Tax: $58.00


RAM-GDS-CHARGE-USBC-V7B1U

The GDS® Modular Hardwire Charger with USB Type-C cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less.


Features & Specs:

  • Input Voltage: 10V - 30V DC
  • Output Voltage: 5-9VDC
  • Output Current: 2.5A max
  • Input Connector: USB Type-C
  • Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
  • Output Cable Length: .2 Meter
  • Operating Temperature: -10°C to +70°C
  • Storage Temperature: -40°C to +70°C
  • Compliance: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant
  • Certifications: CE Certification, e-Mark Certification, RCM Certification, FCC Certification
  • Weight: 0.43 lbs.
  • Warranty Status: 3 year warranty

Package Content:

  • 1 x GDS® Modular 10-30V Hardwire Charger with Type-C Cable (RAM-GDS-CHARGE-USBC-V7B1U)
