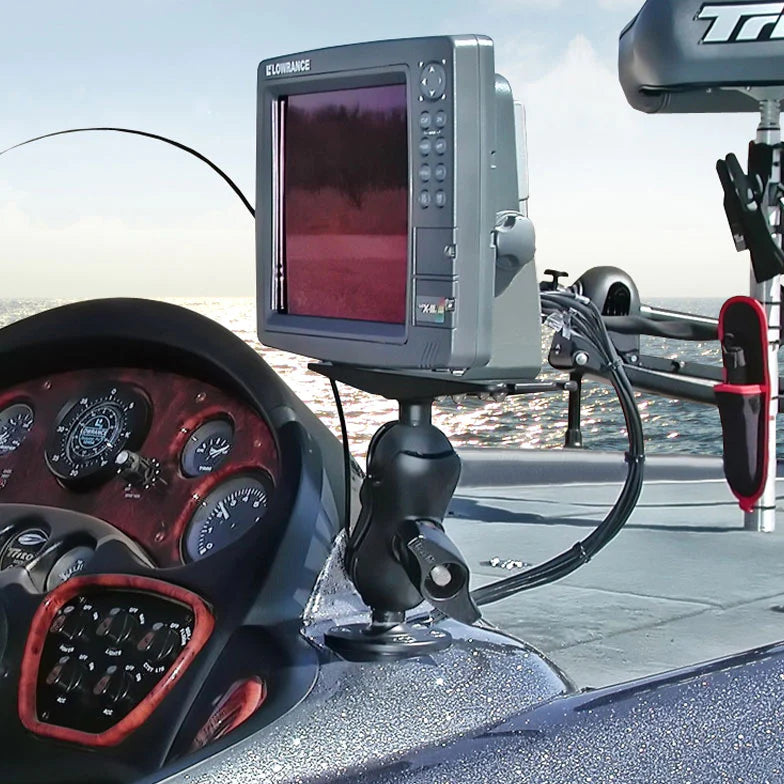

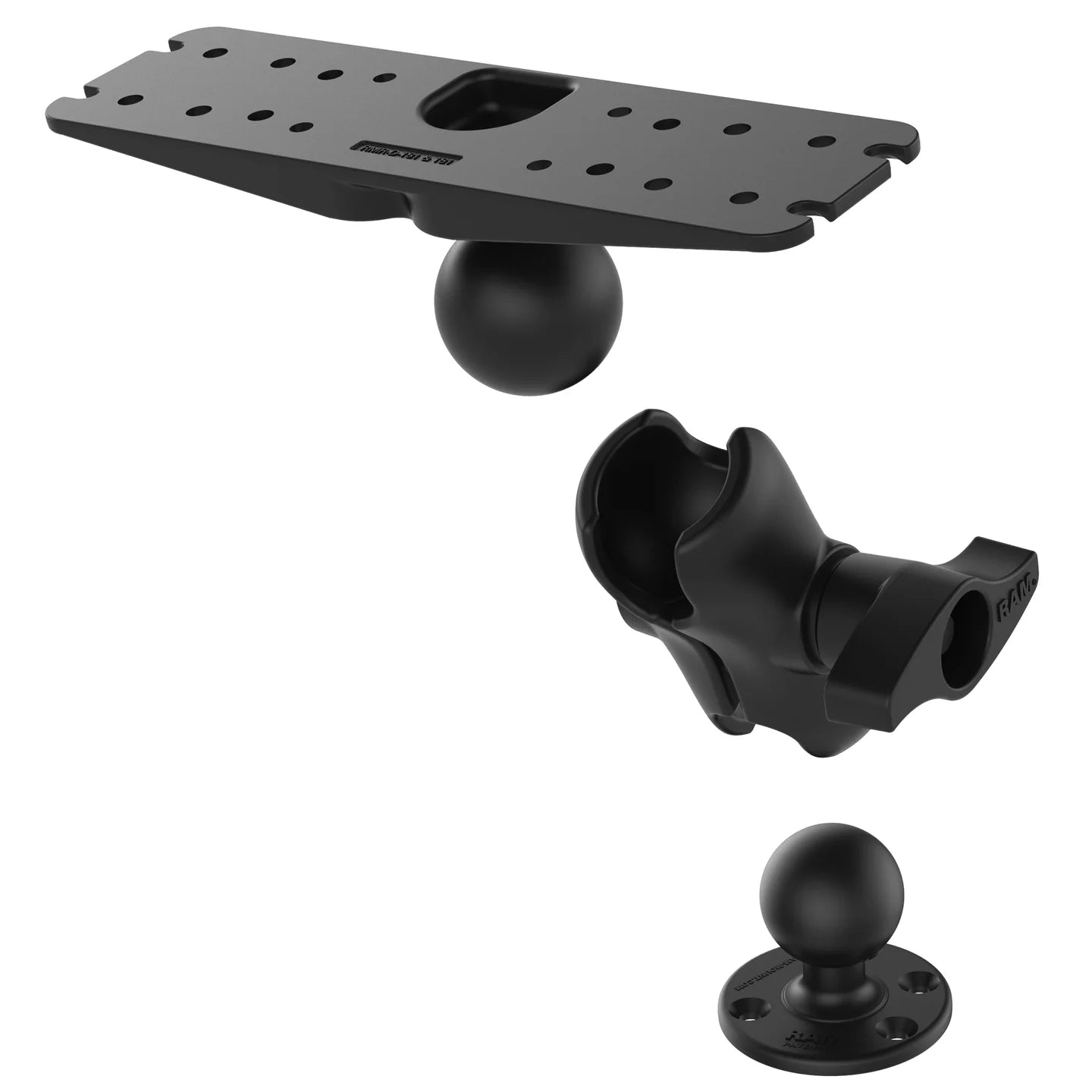

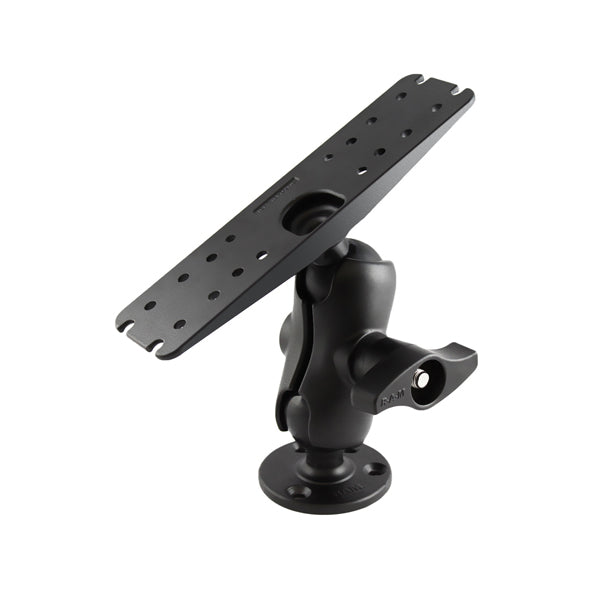

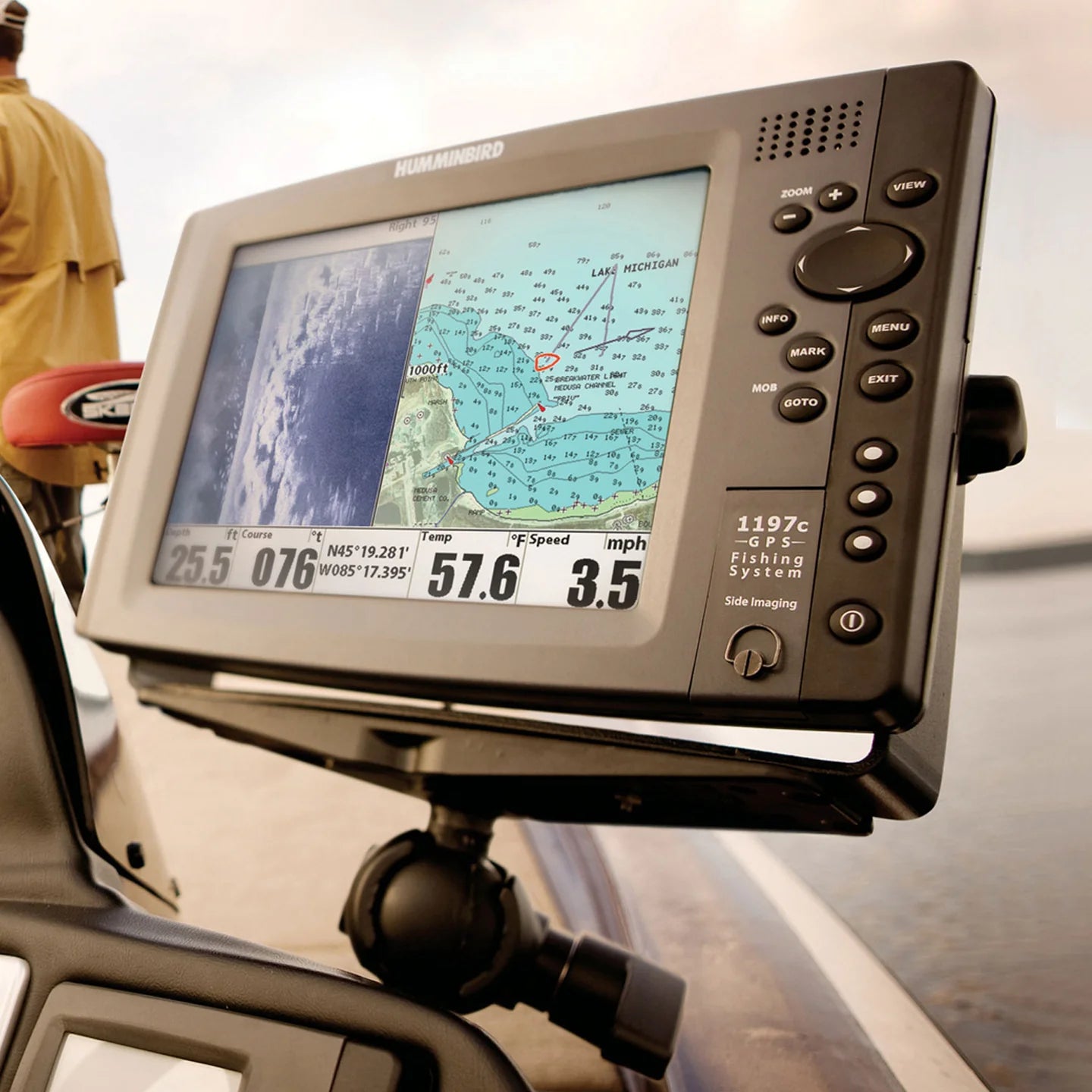

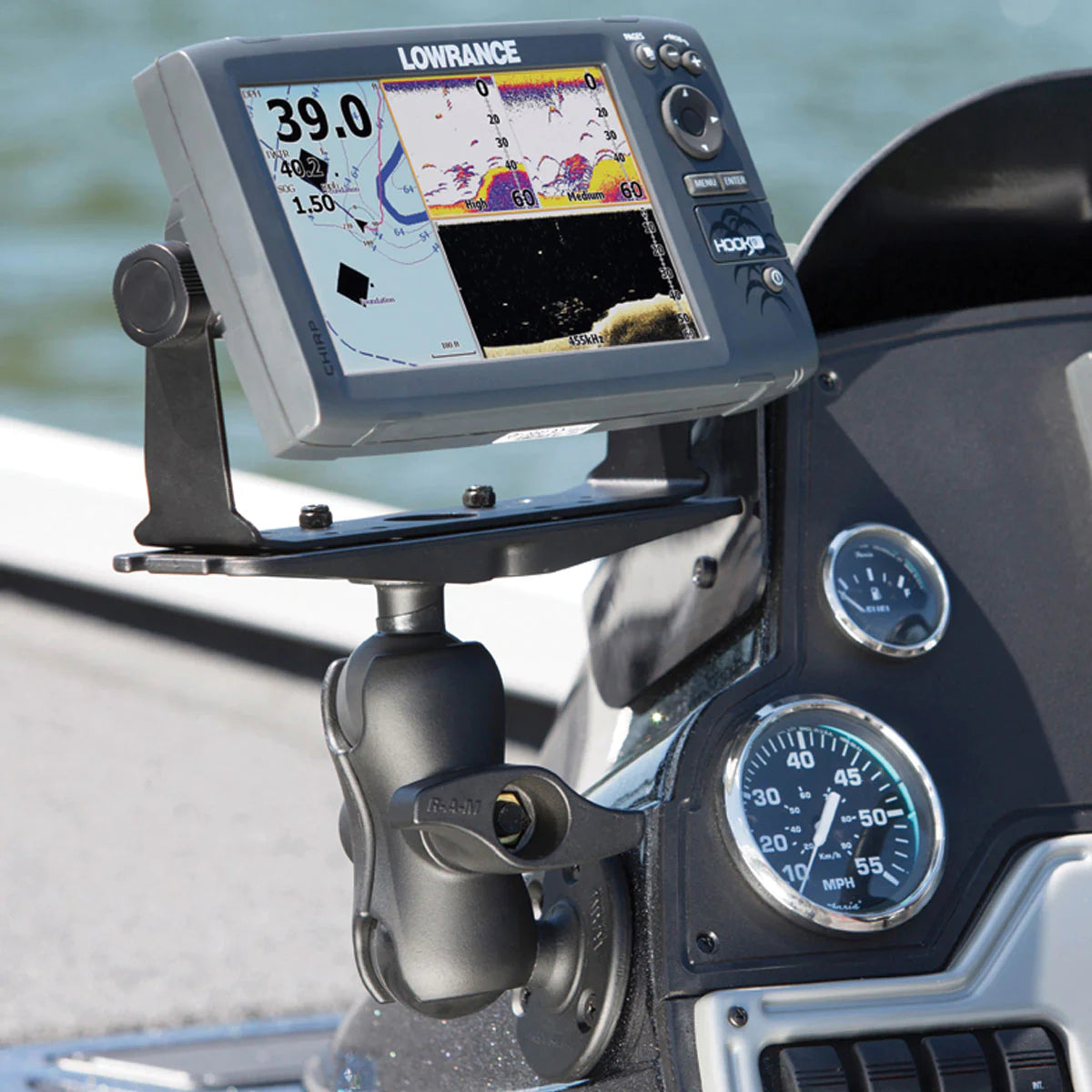

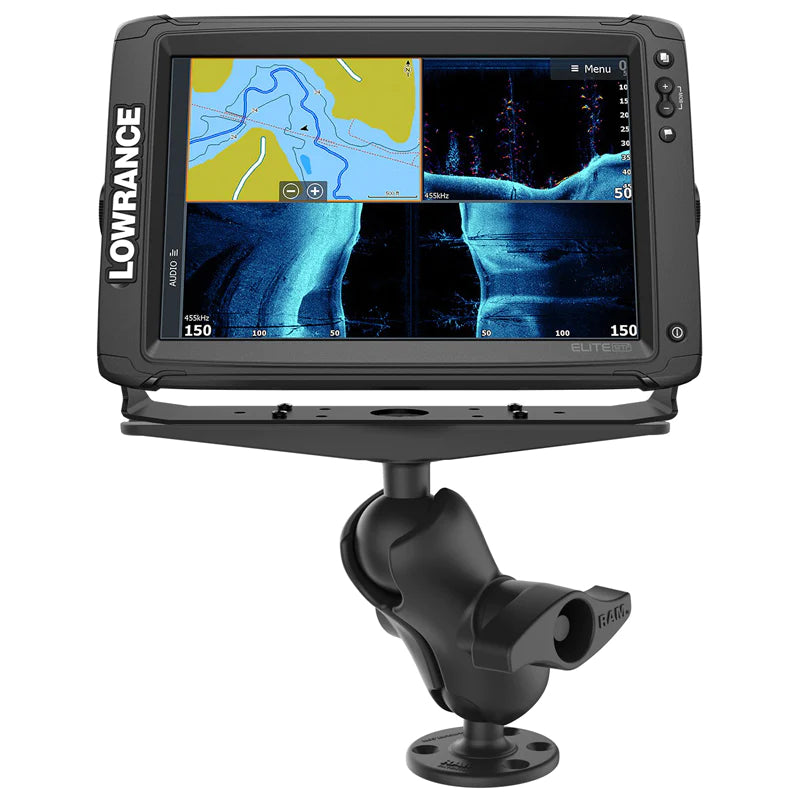

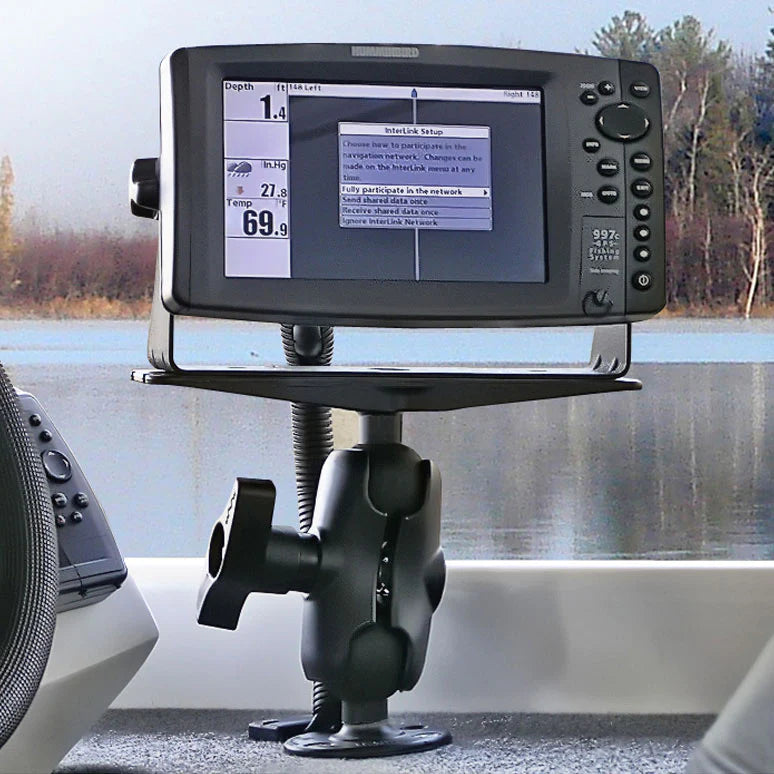

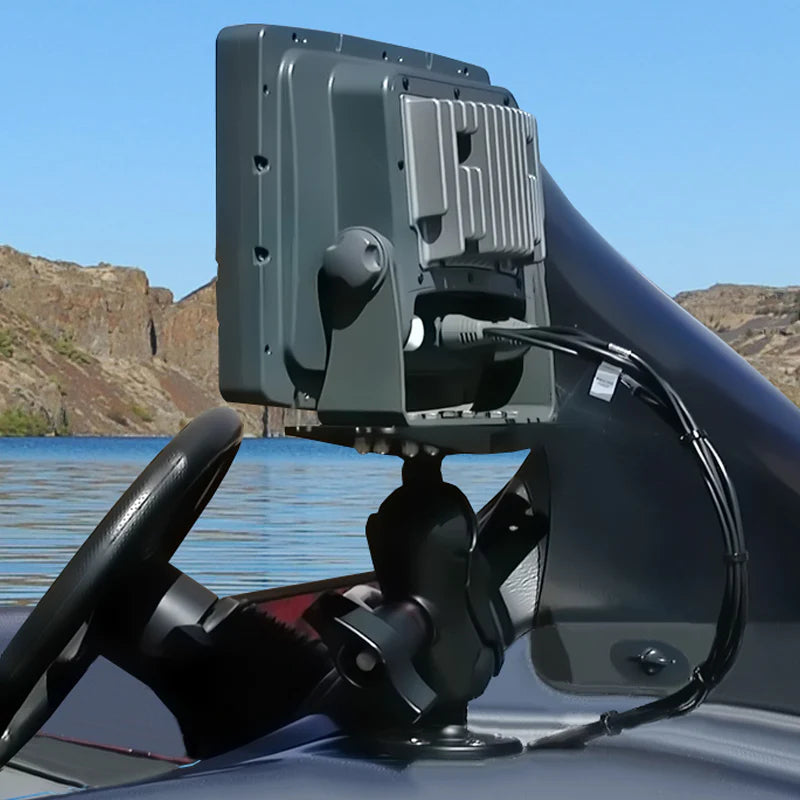

The RAM-D-111U-C consists of a SHORT double socket arm, 3.68" diameter round base and 11" x 3" rectangular base. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Specs & Features

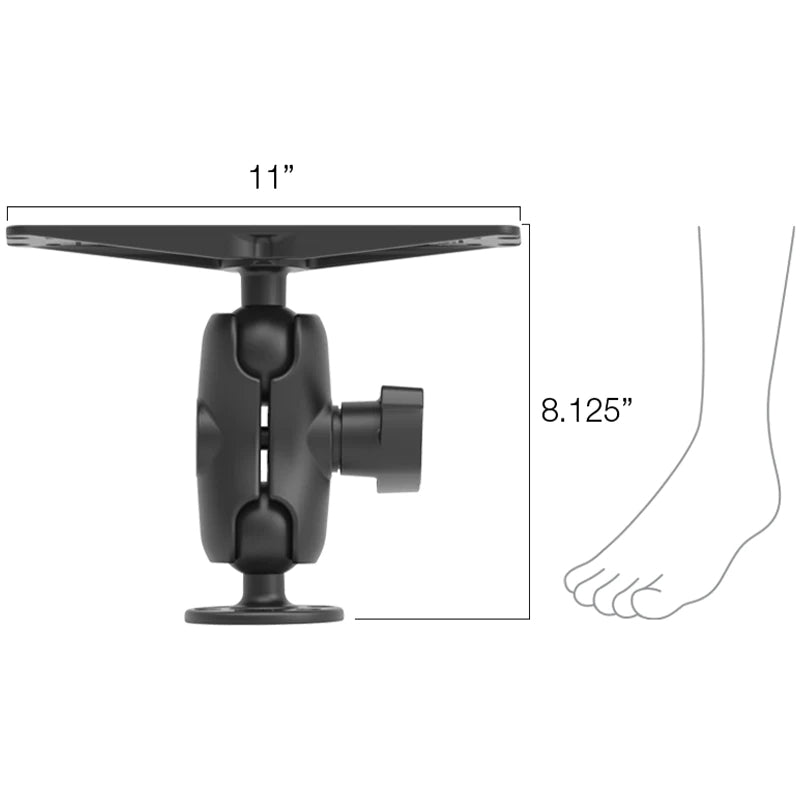

Overall Length: 8.125"
Weight Capacity: Up to 6 lbs.
Material: Powder Coated Marine Grade Aluminum
Ball Size: 2.25" Rubber "D" Ball Size
Note: The "U" in the part number reflects product packaged in poly bag. The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
