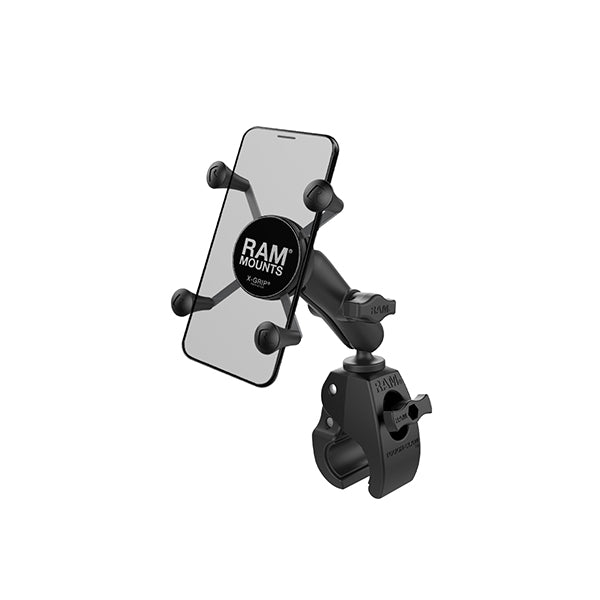

RAM® X-Grip® Phone Mount with RAM® Tough-Claw™ Small Clamp Base (RAM-B-400-HOL-UN7BU)
RAM® X-Grip® Phone Mount with RAM® Tough-Claw™ Small Clamp Base (RAM-B-400-HOL-UN7BU)
SKU:RAM-B-400-HOL-UN7BU

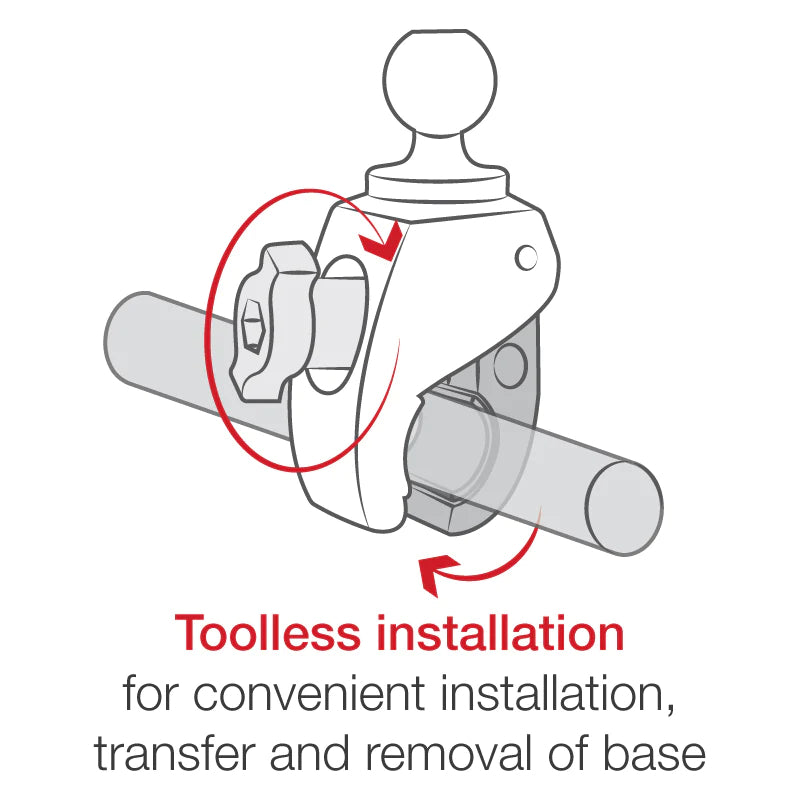

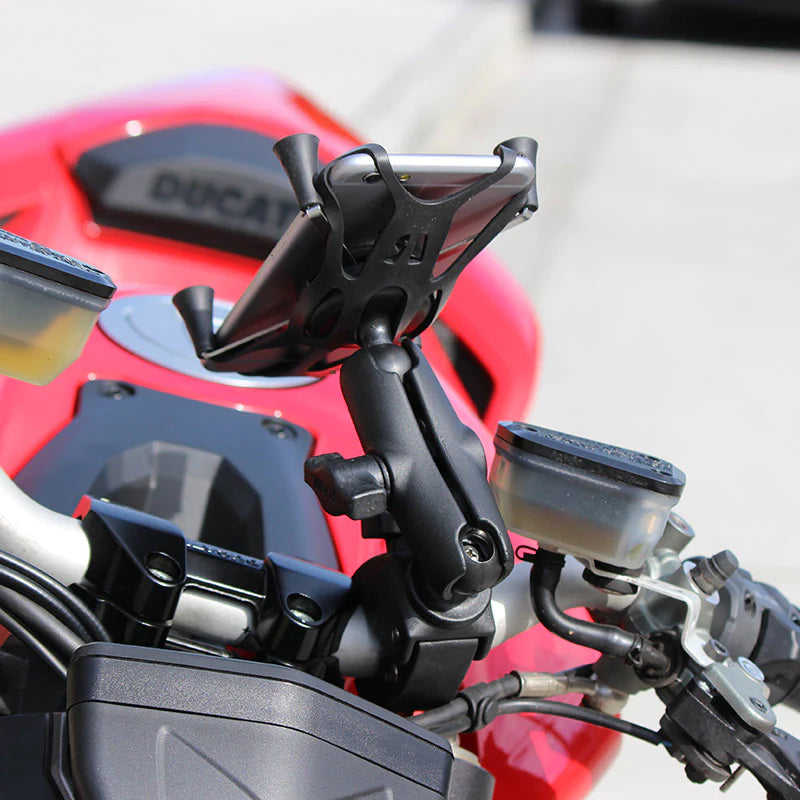

The RAM® Tough-Claw™ is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM® Tough-Claw™ includes a B size 1" rubber ball and can quickly be clamped on rails ranging from 1.87" to 3.25" in outer diameter €“ ideal for mounting mounting on the yoke of an aircraft, handlebars of bicycles and motorcycles, or even on kayak rails and roll bars.

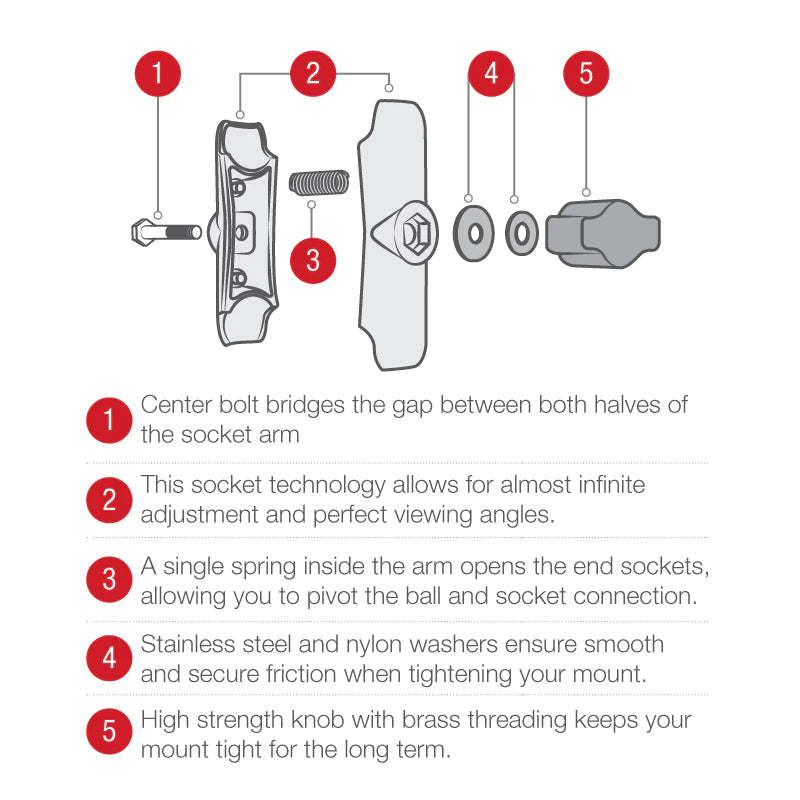

This kit includes a medium length double socket arm and the popular spring-loaded RAM® X-Grip® phone holder, featuring an 'X' design that expands and contracts to provide a perfect fit for your device €“ even if it's in a case. The standard size version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
Features
Features
- Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Tech Specs
Tech Specs
- Holder Dimensions:
Width Range: 1.875" - 3.25", Depth Range: .875" max - Clamp Range: .625" - 1.14" diameter

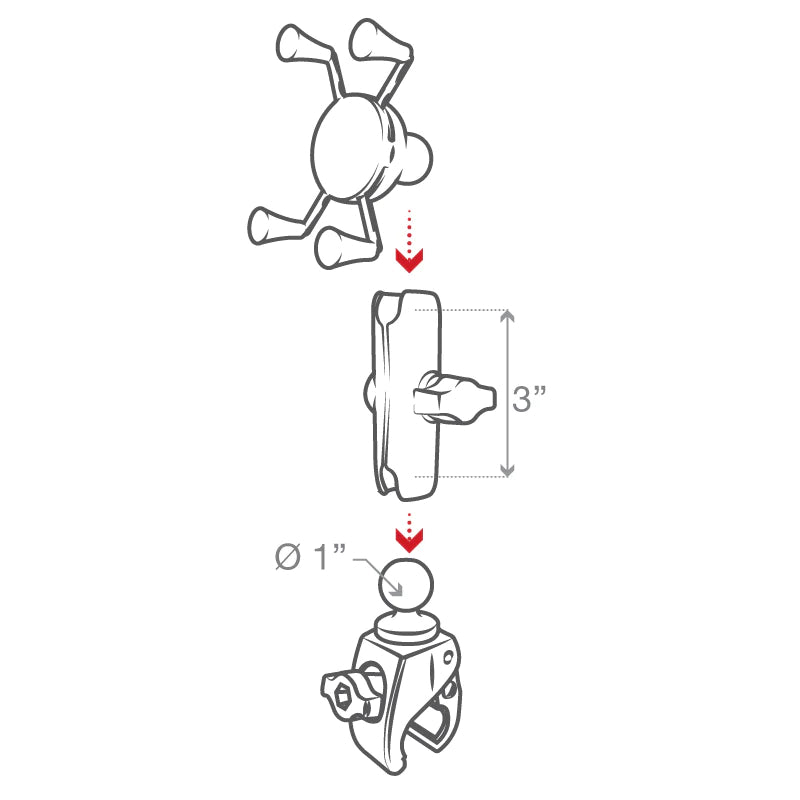

- Socket-to-Socket Length: 3"
- Ball Size: B Size (1")
- Weight Capacity:
Standard Use: 2 lbs Heavy-Duty Use: 1 lb
- Weight: 0.81 lb
- Material: Marine-grade aluminum, High strength composite, Stainless steel
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Compatibility
Compatibility
- Apple: iPhone 6s, iPhone 7, iPhone 8, iPhone SE, iPhone X, iPhone Xs, iPhone Xr, iPhone 11, iPhone 11 Pro, iPhone 12, iPhone 12 mini, iPhone 12 Pro, iPhone 13, iPhone 13 mini, iPhone 13 Pro, iPhone 14, iPhone 14 Pro, iPhone 15 Pro
- Blackberry: DTEK 50, DTEK 60, KEYone
- Garmin: Approach G8, Edge 1030, Edge Explore 1000
- Google: Pixel, Pixel XL, Pixel 2, Pixel 3, Pixel 3a, Pixel 4, Pixel 4 XL, Pixel 4a, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, Pixel 8
- HTC: U11, U11 life
- Huawei: Mate 20 Pro, P30 Pro
- LG: Aristo, Aristo 2, Exalt LTE, G5, G5 Silver, G6, G6+, G7 ThinQ, G8 ThinQ, Grace LTE, K20, K20 Plus, K20 V, K3, K3 2017, K8 2017, Phoenix 3, Q6, Rebel 2 LTE, Rebel 3 LTE, Risio 2, Tribute Dynasty, Tribute HD, V30, V35 ThinQ, V40 ThinQ, Wine LTE, Zone 4
- Motorola: moto e4, moto g5s plus, moto g6, moto g7 power, moto X2, moto X4, razr
- Nokia: 1, 2, 3, 5, 6, 8, 9 PureView, 216, 230, 150 Dual SIM, 3310 Dual SIM, 7 plus, 8 Sirocco, 8110 4G
- OnePlus: 6T, 7, 7T, 7T Pro, 7 Pro
- Panasonic: Eluga X1 Pro
- Samsung: Galaxy A3, Galaxy A3 (2016), Galaxy A3 (2017), Galaxy A5, Galaxy A5 (2016), Galaxy A5 (2017), Galaxy A6, Galaxy A6+, Galaxy A7 (2016), Galaxy A8+, Galaxy A8 (2018), Galaxy A8+ (2018), Galaxy A10, Galaxy A10e, Galaxy A10s, Galaxy A11, Galaxy A20e, Galaxy A30, Galaxy A40, Galaxy A50, Galaxy A50s, Galaxy AMP 2, Galaxy AMP Prime, Galaxy AMP Prime 2, Galaxy C5, Galaxy E5, Galaxy Express 3, Galaxy Express Prime 2, Galaxy Grand Max, Galaxy J1, Galaxy J1 (2016), Galaxy J2, Galaxy J2 (2016), Galaxy J2 (2017), Galaxy J3 (2016), Galaxy J3 (2017) International, Galaxy J3 Emerge, Galaxy J3 Prime, Galaxy J3 V, Galaxy J5, Galaxy J5 (2016), Galaxy J5 (2017), Galaxy J7 (2016), Galaxy J7 (2017), Galaxy J7 Perx, Galaxy J7 Prime, Galaxy J7 Prime 2, Galaxy Luna, Galaxy Note 8, Galaxy Note Fan Edition, Galaxy Note 10, Galaxy Note20, Galaxy On NXT, Galaxy On5, Galaxy On7 Prime, Galaxy On8, Galaxy S5, Galaxy S5 Neo, Galaxy S6, Galaxy S6 Active, Galaxy S6 Edge, Galaxy S6 Edge+, Galaxy S7, Galaxy S7 Active, Galaxy S7 Edge, Galaxy S8+, Galaxy S9, Galaxy S9+, Galaxy S10, Galaxy S10+, Galaxy S10e, Galaxy S20, Galaxy S20+, Galaxy S20 FE 5G, Galaxy S20 Ultra 5G, Galaxy S22 5G, Galaxy S22+ 5G, Galaxy S23, Galaxy S24, Galaxy V Plus, Galaxy XCover 3, Galaxy XCover 4, Galaxy XCover 5, Galaxy Z Fold2, Galaxy Z Fold3, W2017, Z1, Z2, Z3, Z4
- Sony: Xperia L1, Xperia X, Xperia X Compact, Xperia X Performance, Xperia XA, Xperia XA1, Xperia XA1 Plus, Xperia XA2, Xperia XZ, Xperia XZ1, Xperia XZ1 Compact, Xperia XZ2, Xperia XZ2 Compact, Xperia XZ3, Xperia XZs, Xperia Z3, Xperia Z3+, Xperia Z5, Xperia Z5 Compact
- Xiaomi: Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3
- ZTE: Axon 9 Pro, Axon 10 Pro
Product Guides
Product Guides
-
Instructions
- RAM X-Grip Assembly Guide

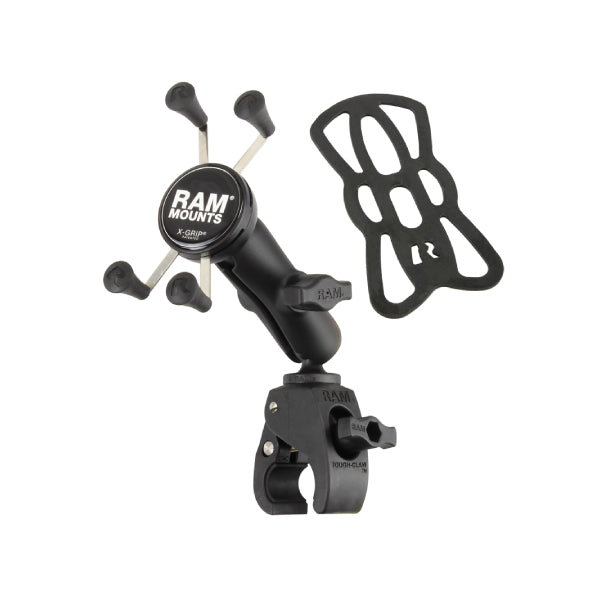

Package Content
Package Content
-
Components
- 1 x RAM-HOL-UN7BU
- 1 x RAM-B-201U
- 1 x RAP-B-400U
