RAM® Quick-Grip™ 15W Waterproof Wireless Charging Mount with Tough-Claw™ (RAM-B-400-A-UN14W-V7M-1)
RAM® Quick-Grip™ 15W Waterproof Wireless Charging Mount with Tough-Claw™ (RAM-B-400-A-UN14W-V7M-1)
SKU:RAM-B-400-A-UN14W-V7M-1
Couldn't load pickup availability

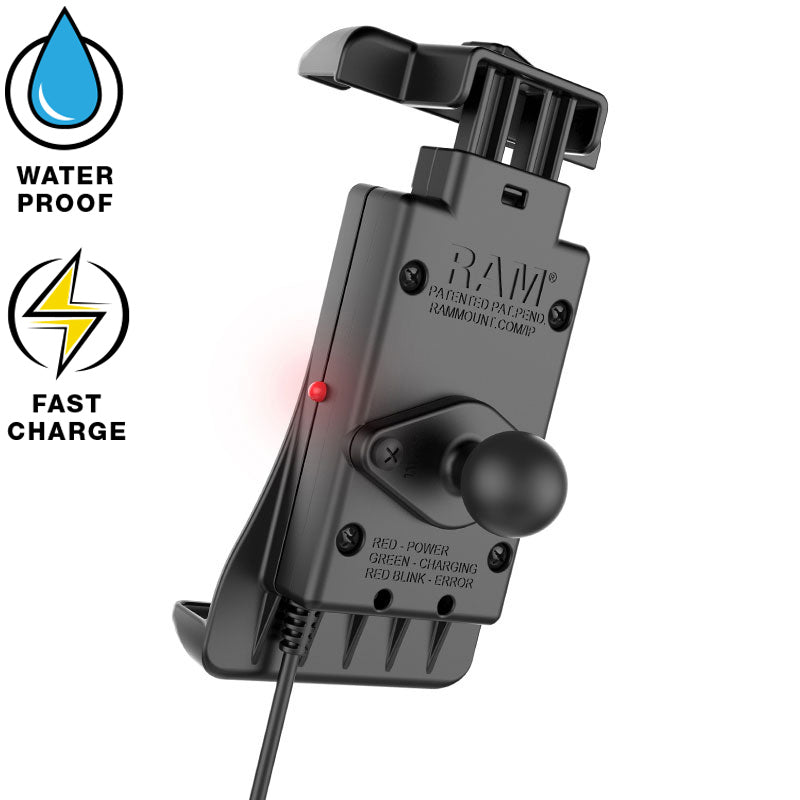

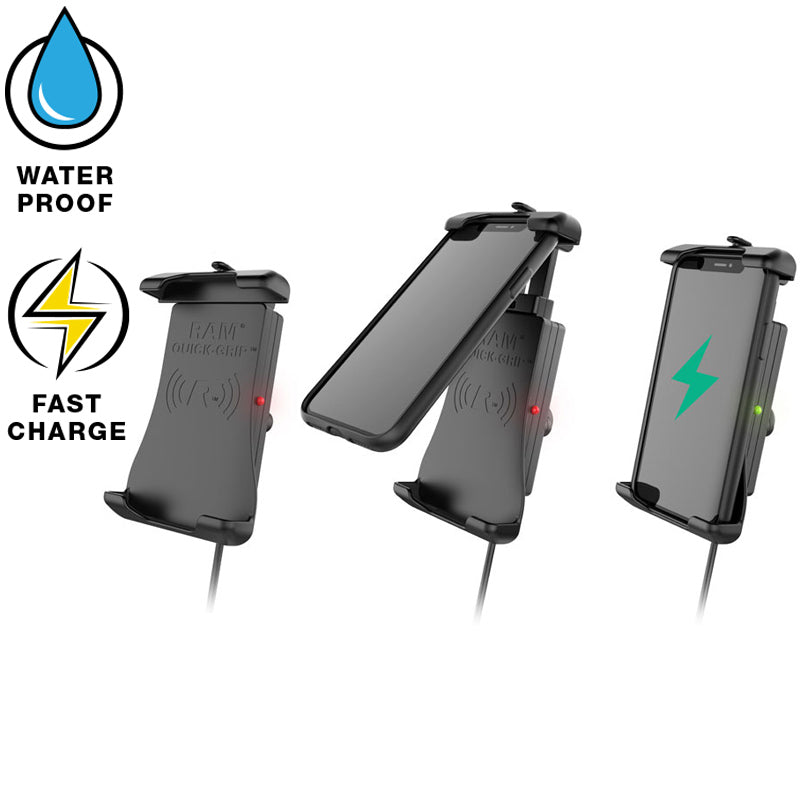

The RAM Quick-Grip Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as its within the listed compatible dimensions. For added security and peace of mind, a device tether is included that's recommended for outdoor applications. This RAM Quick-Grip Wireless kit includes a B size diamond base featuring a 1 rubber ball, short length double socket arm, and a RAM Tough-Claw clamping base. With the RAM Tough-Claw base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625 to 1.14 in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
Features
Features
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output

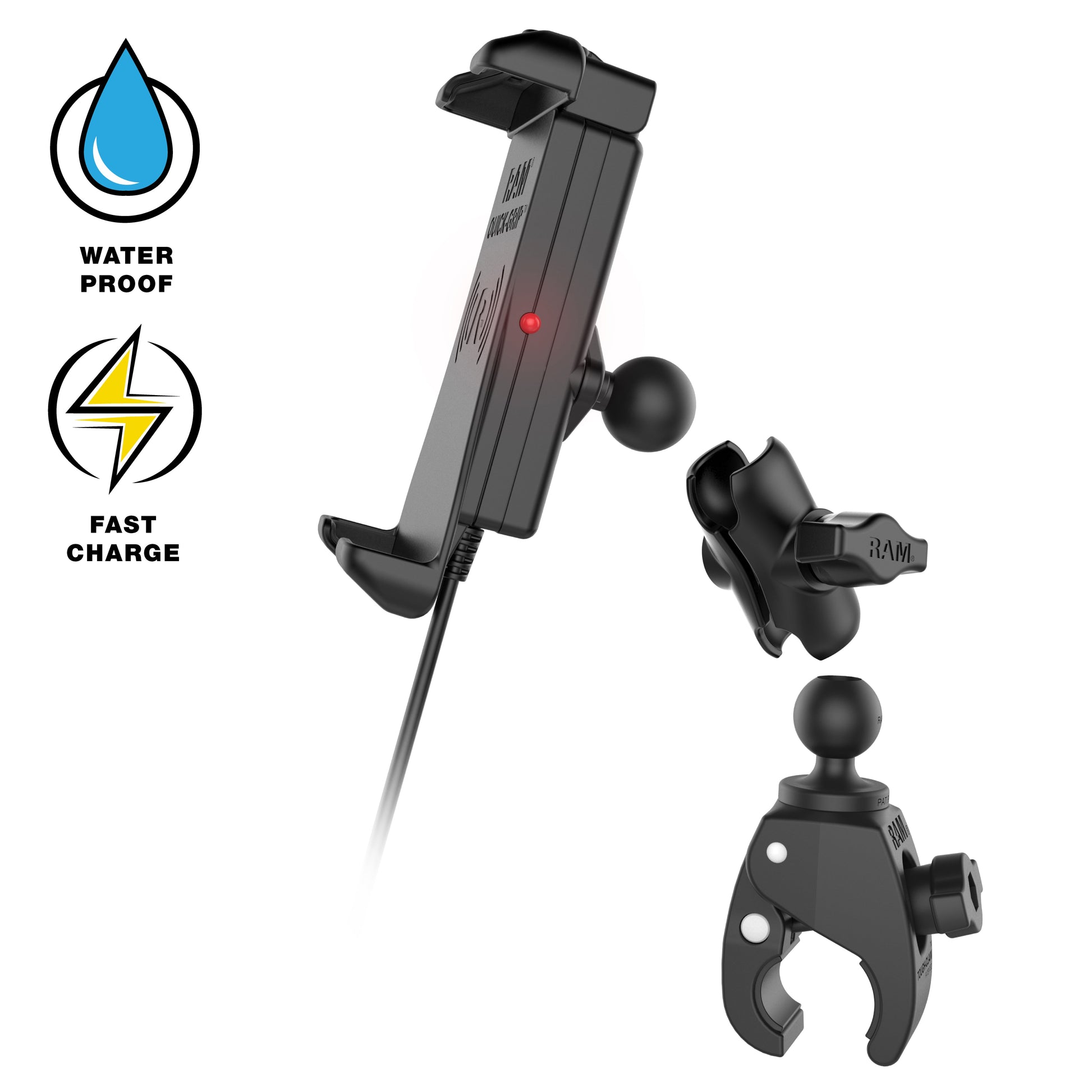

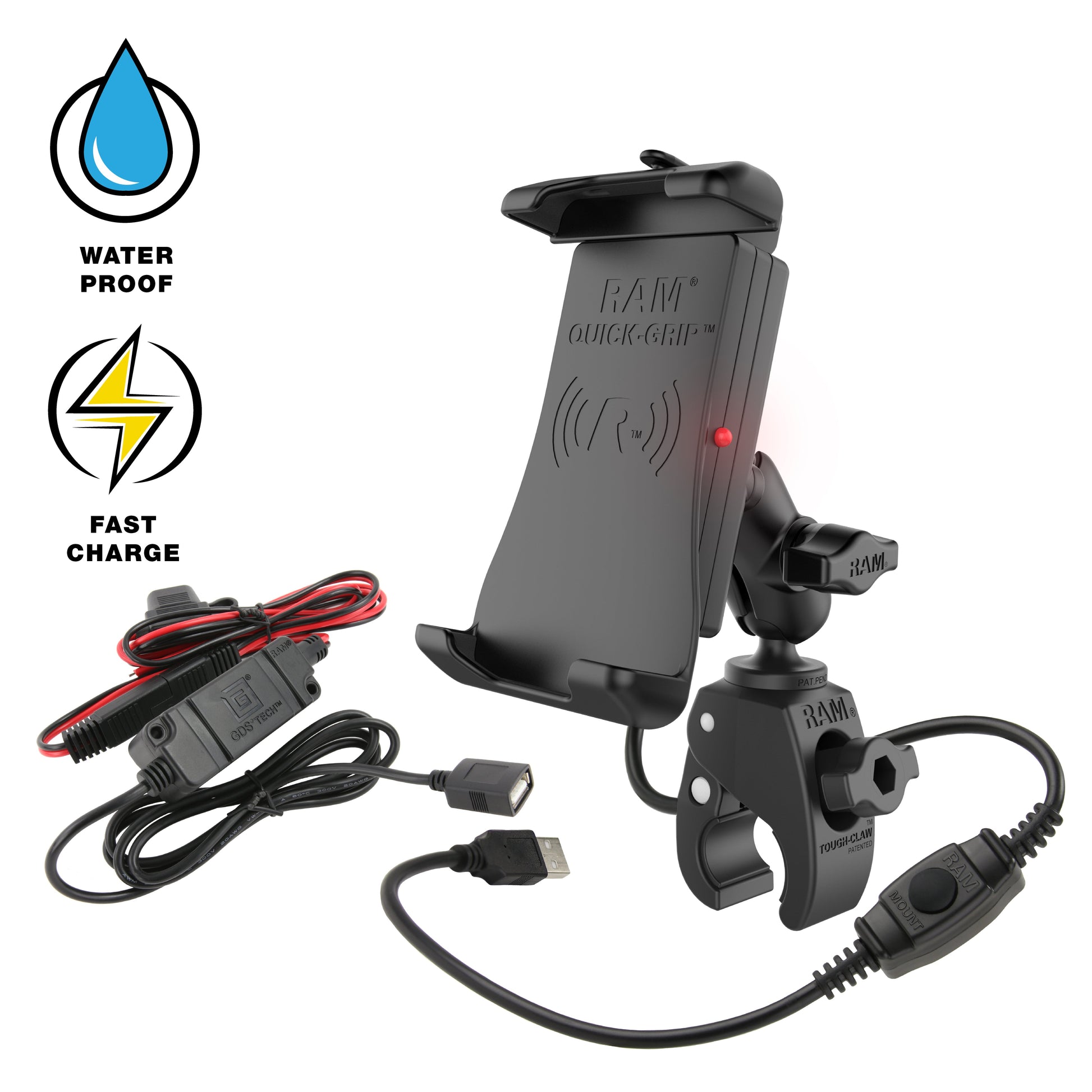

- Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM® Tough-Claw™ clamping base, and hardwire charger
- Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
Tech Specs
Tech Specs
- Product Weight: 3.13 lb

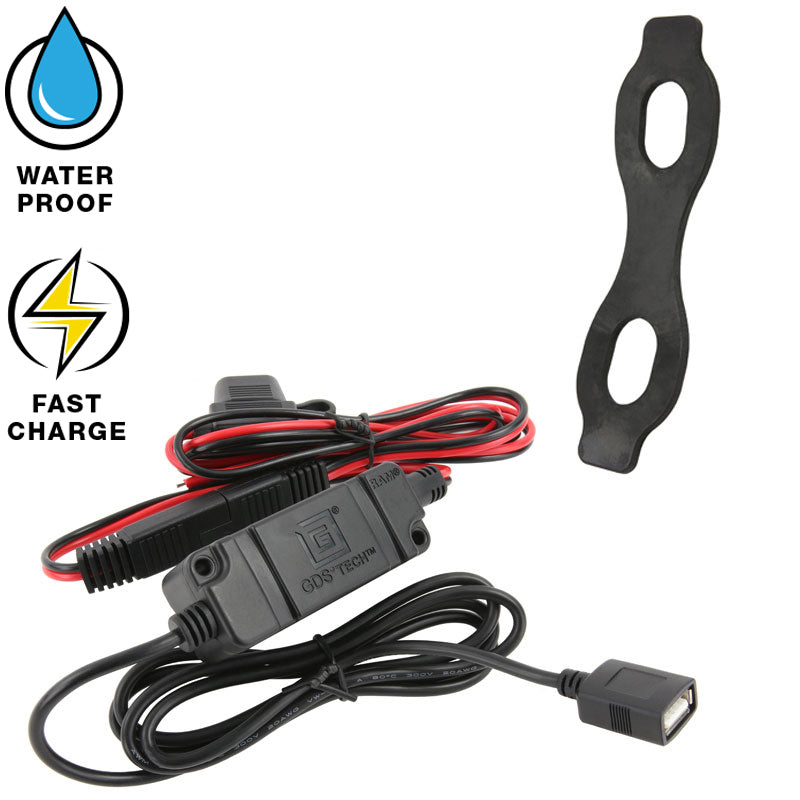

- Hardware Included: (1) Safety Tether | (1) Silicon sleeve for USB waterproof connection | (1) Hardwire Charger with Cable | (4) Small zip ties | (4) Large zip ties
- Holder Dimensions: Height Range: 5.625" - 6.625" | Max Width: 3.125" | Max Depth: .7"
- Clamp Range: .625" - 1.14" diameter
- Socket To Socket Length: 1.75"
- Ball Size: B Size (1")
- Weight Capacity: Standard Use: 2 lbs | Heavy-Duty Use: 1 lb
- Materials: High strength composite | Stainless steel
- Packaging Type: Retail Box
- Power Specifications: Input Power:5V-2A; 9V-1.67A | Output: 15W | Conversion Efficiency: 85% Max | Maximum Case Thickness: 6mm | Working Frequency: 110-205KHZ | Product Standard: WPC v.1.2.4 | QI Compatible | Compatible with QC2.0/QC3.0 power supplies
- Operating Temperature: 0°C to +37.7°C
- Regulatory: Over Voltage Protection | Short Circuit Protection | Reverse Polarity Protection | RoHS Compliance | WEEE Compliance | SAE J-1113-5 Load Dump (Transient Voltage) | Moisture Resistant
- Certifications: CE Certification | E-Mark Certification | RCM Certification | FCC Certification
Package Content
Package Content
- 1 x RAM® Quick-Grip™ 15W Waterproof Wireless Charging Mount with Tough-Claw™ (RAM-B-400-A-UN14W-V7M-1)
