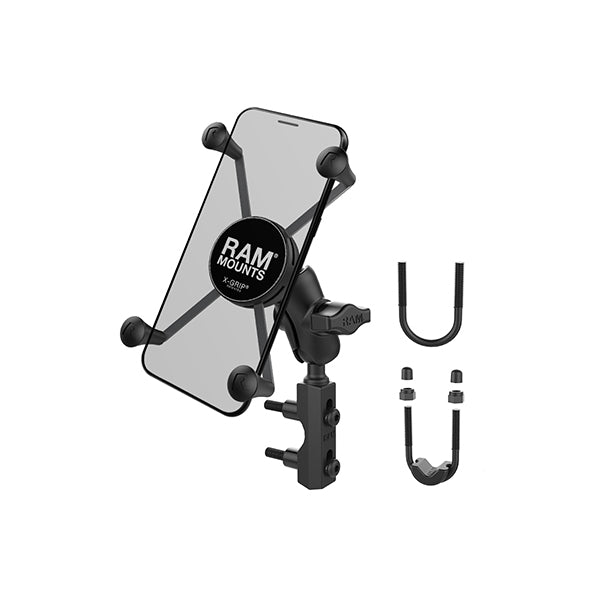

RAM® X-Grip® Large Phone Mount with Brake/Clutch Reservoir Base (RAM-B-174-A-UN10U)

RAM® X-Grip® Large Phone Mount with Brake/Clutch Reservoir Base (RAM-B-174-A-UN10U)

  • $138.60 Ex. Tax: $126.00


RAM-B-174-A-UN10U

The RAM-B-174-A-UN7 consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, short length double socket arm and universal X-Grip® cell phone cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip® mount to your optimum viewing position.
The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Compatible Devices :
    • Apple: iPhone 6s Plus, iPhone 7 Plus, iPhone 8 Plus, iPhone Xs Max, iPhone 11 Pro Max
    • Blackberry: Evolve X
    • Garmin: Drive 50, Drive 51 LM, Drive 52, Drive 61 LM, DriveSmart 51 LMT-S, DriveSmart 61 LMT-S, DriveTrack 71, Nuvi 2788LM, RV 660LMT, RV 770 LMT-S
    • Google: Pixel 2 XL, Pixel 3 XL, Pixel 3a XL
    • HTC: Bolt, U Ultra
    • Huawei: Mate 20 X
    • LG: Fiesta 2 LTE, Fiesta LTE, G8S ThinQ, Harmony, Stylo 2 V, Stylo 3, Stylo 3 Plus Titan, Stylo 4, V20, V50 ThinQ, X charge, X venture
    • Magellan: TR5, TR7
    • Motorola: moto e4 plus, moto g4, moto z2, moto z2 play, moto z3
    • Rand: McNally Road Explorer 5, McNally TND 540
    • Razer: Phone 2
    • Samsung: Galaxy A7, Galaxy A7 (2017), Galaxy A7 (2018), Galaxy A8, Galaxy A8 (2016), Galaxy A9 (2016), Galaxy A9 Pro (2016), Galaxy A9 (2018), Galaxy A70, Galaxy A80, Galaxy A90 5G, Galaxy C7, Galaxy C7 Pro, Galaxy C9 Pro, Galaxy E7, Galaxy Grand Neo Plus, Galaxy J7, Galaxy J7 Max, Galaxy J7 V, Galaxy Note 5, Galaxy Note 10 Plus, Galaxy On7, Galaxy S10 5G, Galaxy S8, Galaxy S8 Active
    • Sony: Xperia C4, Xperia L2, Xperia XA Ultra, Xperia XA1 Ultra, Xperia XA2 Ultra, Xperia XZ Premium

Specs & Features
    • Hardware Included: (1) Optional Tether , (1) Glue Tube for Rubber Caps , (2) M6 x 55mm Hex Bolts , (2) #1/4-20 x 2" Hex Bolts , (2) 1/4"-20 x 2.5" Hex Bolts , (2) 1/2" Spacers , (2) 1/4" Split Lock Washers , (1) 1/4"-20 x 1.75" U-Bolt , (1) 1/4"-20 x 2.5" U-Bolt , (2) 1/4"-20 Nylock Nuts , (2) Rubber Caps , (1) U-Bolt Spacer
    • Holder Dimensions: Width Range: 1.75" - 4.5", Depth Range: .875" max
    • Clamp Range: .5" - 1.25" diameter
    • Socket-to-Socket Length: 1.75"
    • Ball/Socket Size: B Size (1")
    • Weight Capacity: 2 lbs
    • Weight: 0.9 lbs.
    • Materials: Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite
    • Note: The "U" in the part number reflects product packaged in poly bag. To see if the RAM-B-174-UN7 will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
Package Contents
    • 1 x RAM-B-201U-A
    • 1 x RAM-B-309-7U
    • 1 x RAM-HOL-UN10BU
