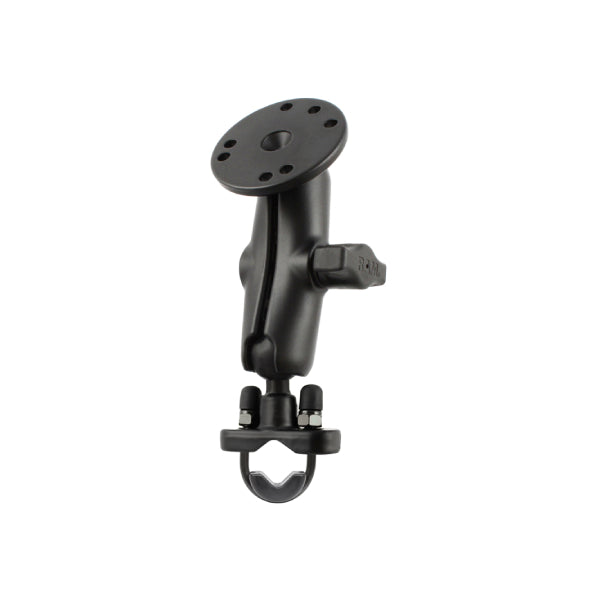

RAM® Handlebar U-Bolt Double Ball Mount with Round Plate (RAM-B-149Z-202U)
The RAM-B-149Z-202U consists of a zinc coated u-bolt base, double socket arm and round base adapter. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Features & Specs
- 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
- Clamp Range: .5" - 1.25" diameter
- Socket-to-Socket Length: 3"
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
- Ball/Socket Size: B Size (1")
- Weight Capacity Standard Use: 2 lbs
- Weight Capacity Heavy-Duty Use: 1 lb
- Materials: Marine-grade aluminum, High strength composite
- Weight: 0.65 lbs.
- 1 x RAM® Handlebar U-Bolt Double Ball Mount with Round Plate (RAM-B-149Z-202U)
