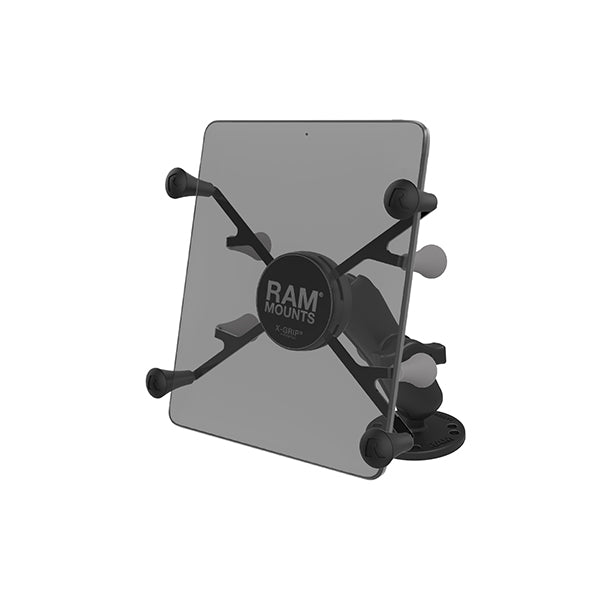

RAM® X-Grip® Universal Drill-Down Mount for 7"-8" Tablets (RAM-B-138-UN8U)
RAM® X-Grip® Universal Drill-Down Mount for 7"-8" Tablets (RAM-B-138-UN8U)
SKU:RAM-B-138-UN8U
The RAM-B-138-UN8 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm and universal X-Grip®clamping cradle for 7"-8" tablets. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features
Features
- Spring-loaded 'X' design features rubber caps and sports great holding power without hiding your tablet; fits most 7"-8" tablets

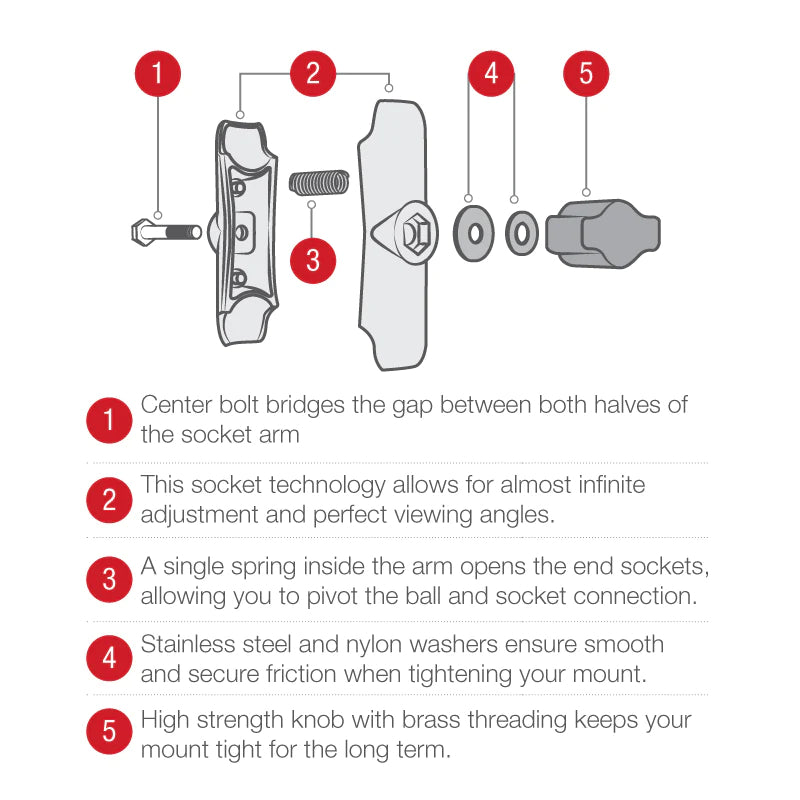

- Includes drill-down 2.5" round base and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Tech Specs
Tech Specs
- Holder Dimensions: Width Range: 2.5" - 5.75", Depth Range: .875" max
- Socket-to-Socket Length: 3"
- Hole Pattern:
- Plate Size: 2.5" Diameter
- Ball/Socket Size: B Size (1")
- Weight Capacity Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
- Weight: 0.76 lbs.
- Materials: Marine-grade aluminum, High strength composite
- Packaging Type: Poly Bag
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
Compatibility
Compatibility
- Amazon: Fire 7 Fire HD 8 Kindle Kindle Oasis Kindle Paperwhite Kindle Voyage
- Apple: iPad mini (1st Generation) iPad mini 2 iPad mini 3 iPad mini 4 iPad mini 5 iPad mini 6
- ASUS: MeMO Pad 8 VivoTab 8 ZenPad 8.0 ZenPad C 7.0 ZenPad S 8.0 ZenPad Z8 ZenPad Z8s
- Dell: Venue 7 Venue 7 (2014) Venue 7 3741 Venue 8 Venue 8 (2014) Venue 8 7840 Venue 8 Pro Venue 8 Pro 5855
- Google: Nexus 7
- HP: Pro Tablet 408 Slate 7
- Huawei: MediaPad M3 MediaPad M3 Lite MediaPad T1 7.0 MediaPad T1 8.0 MediaPad T3 7 MediaPad T3 8
- Lenovo: Ideapad Miix 300 IdeaTab A1000 IdeaTab A2107 IdeaTab A3000 Tab 2 A7-10 Tab 2 A7-20 Tab 2 A7-30 Tab 2 A8 Tab 4 8 Tab 4 8 Plus Tab 7 Essential Tab A7-30 Tab A7-40 Tab A7-50 Tab A8-50 Tab S8 Tab3 7 Tab3 8 Yoga Tablet 8
- LG: G Pad 7.0 G Pad F 8.0 (2nd Gen) G Pad F2 8.0 G Pad II 8.0 G Pad X 8.0 G Pad X II 8.0
- Nvidia: Shield Tablet
- Nokia: T10
- Rand: McNally OverDryve 7 McNally OverDryve 7 Pro McNally OverDryve 7 RV McNally OverDryve 7c McNally OverDryve 8 Pro McNally Road Explorer 7 McNally Road Explorer 70 McNally RV Tablet 70 McNally RVND 7 McNally TND 740 McNally TND Tablet 70 McNally TND Tablet 80
- Samsung: Galaxy Tab 2 7.0 Galaxy Tab 3 7.0 Galaxy Tab 3 8.0 Galaxy Tab 3 Lite 7.0 Galaxy Tab 4 7.0 Galaxy Tab 4 8.0 Galaxy Tab 7.7 Galaxy Tab A 7.0 Galaxy Tab A 7.0 Galaxy Tab A 8.0 Galaxy Tab A 8.0 (2017) Galaxy Tab A 8.0 (2018) Galaxy Tab A 8.0 (2019) Galaxy Tab Active2 Galaxy Tab E 7.0 Galaxy Tab E 8.0 Galaxy Tab Pro 8.4 Galaxy Tab S 8.4 Galaxy Tab S2 8.0
- Social: Mobile Rhino T80
- Vankyo: MatrixPad Z1 7"
Product Guides
Product Guides
-
Instructions
- RAM X-Grip Assembly Guide
- How to Find the Right Holder for Your Tablet
Documents

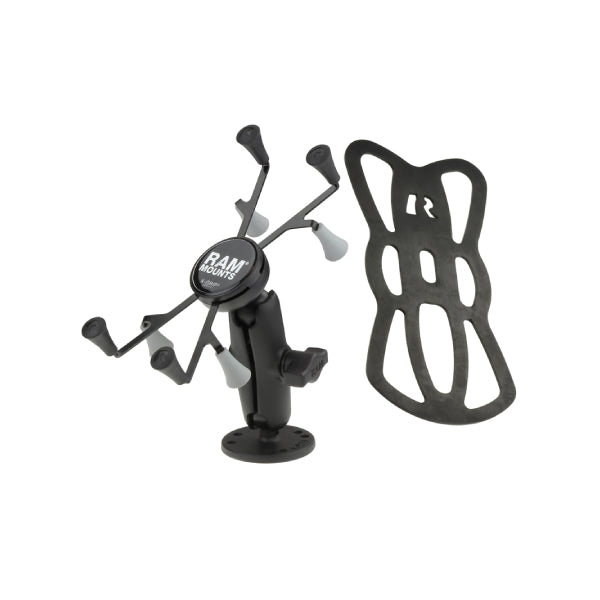

Package Content
Package Content
-
Components
- 1 xRAM-HOL-UN8BU
- 1 xRAM-B-201U
- 1 xRAM-B-202U
