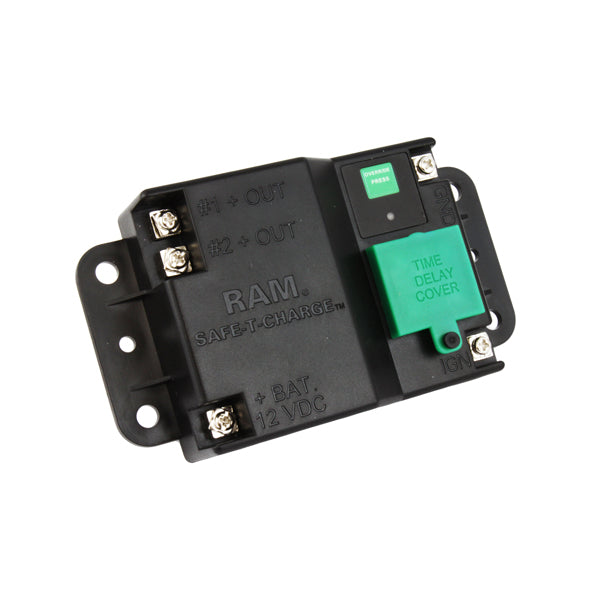

RAM Safe-T-Charge™ Battery Protection System (RAM-234-VCP1U)

The RAM Safe-T-Charge™ is feature rich and affordable making it the best choice in protecting your vehicle or boat’s electrical system and battery. With multiple configurations available through onboard dip switches, the Safe-T-Charge™ can be configured to shut down connected devices either by a trigger coming from the ignition of the vehicle or by sensing a drop in the DC voltage below a level capable of starting your engine. Easily select a predetermined duration of time to have your connected devices shut down to assure you will always be able to start your vehicle. The RAM Safe-T-Charge™ offers a audible tone starting five minutes before the timer shuts off power to your devices, and continuing every minute until the power is shut down. The on board over-ride switch enables the user to by pass the timed shut off feature in the case of an emergency or other event which requires immediate access to device power.

Specs & Features

• L x W x H = (95 mm/3.74") x (80mm/3.15") x (32mm/1.26")
• Materials: ABS, flame retardant plastic construction
• Water-proof for use in marine environments
• 30AMP Rating
• 24V jump start protection
• Battery + 12V input terminal
• Output terminal (More outputs can be connected by overlapping the wires and fastening.)
• Ground terminal
• IGN terminal
• Over ride switch
• Timer start LED
• Selector for DC or IGN sense
• 3-dip switch for time set
• Mounting holes
• Sticker on turning cover for indication of time setting
• Note: The "U" in the part number reflects product packaged in poly bag.
