RAM Swing Arm with Rectangle Base & Horizontal Mount (RAM-109HU)

RAM Swing Arm with Rectangle Base & Horizontal Mount (RAM-109HU)

SKU:RAM-109HU

Ex. Tax: Regular price Ex. Tax: $150.00 NZD
Regular price Sale price $150.00 NZD
Sale Sold out

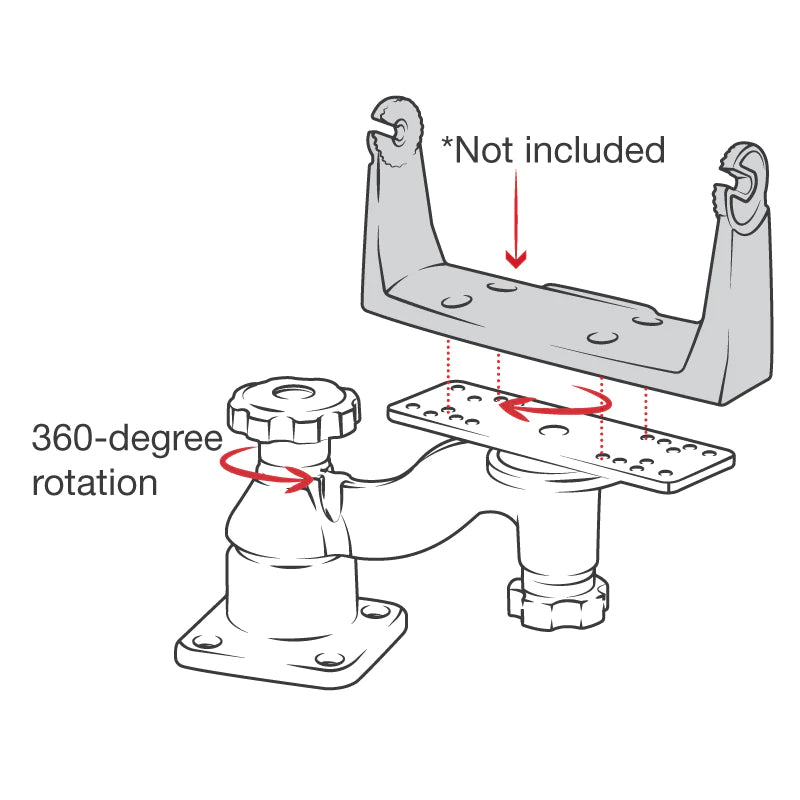

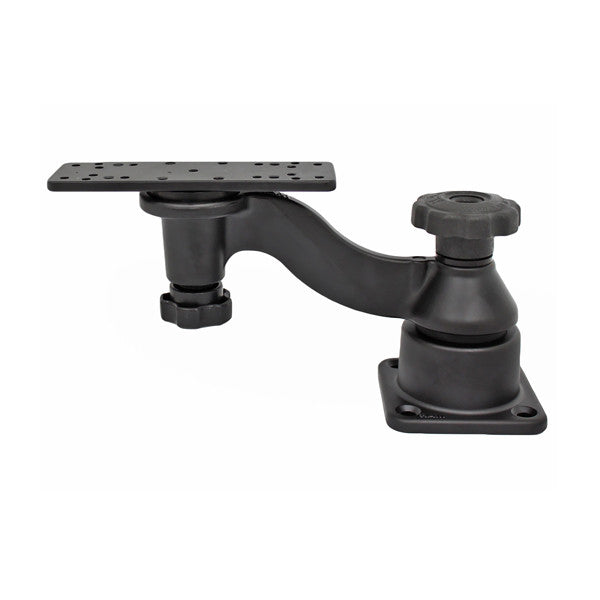

The RAM-109HU single swing arm mount consists of a 6" long BENT swing arm mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the RAM-109HU mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

Specs & Features
    • Weight Capacity: Up to 10 lbs.
    • Dimensions: A. Center of knob to center of ball socket: 6"; B. Overall length of swing arm assembly: 10.75"; C. Overall height: 5.6"; D. Height from base to top of knob: 4.91"
    • Material: Powder Coated Marine Grade Aluminum
    • Weight: 2.09 lbs.

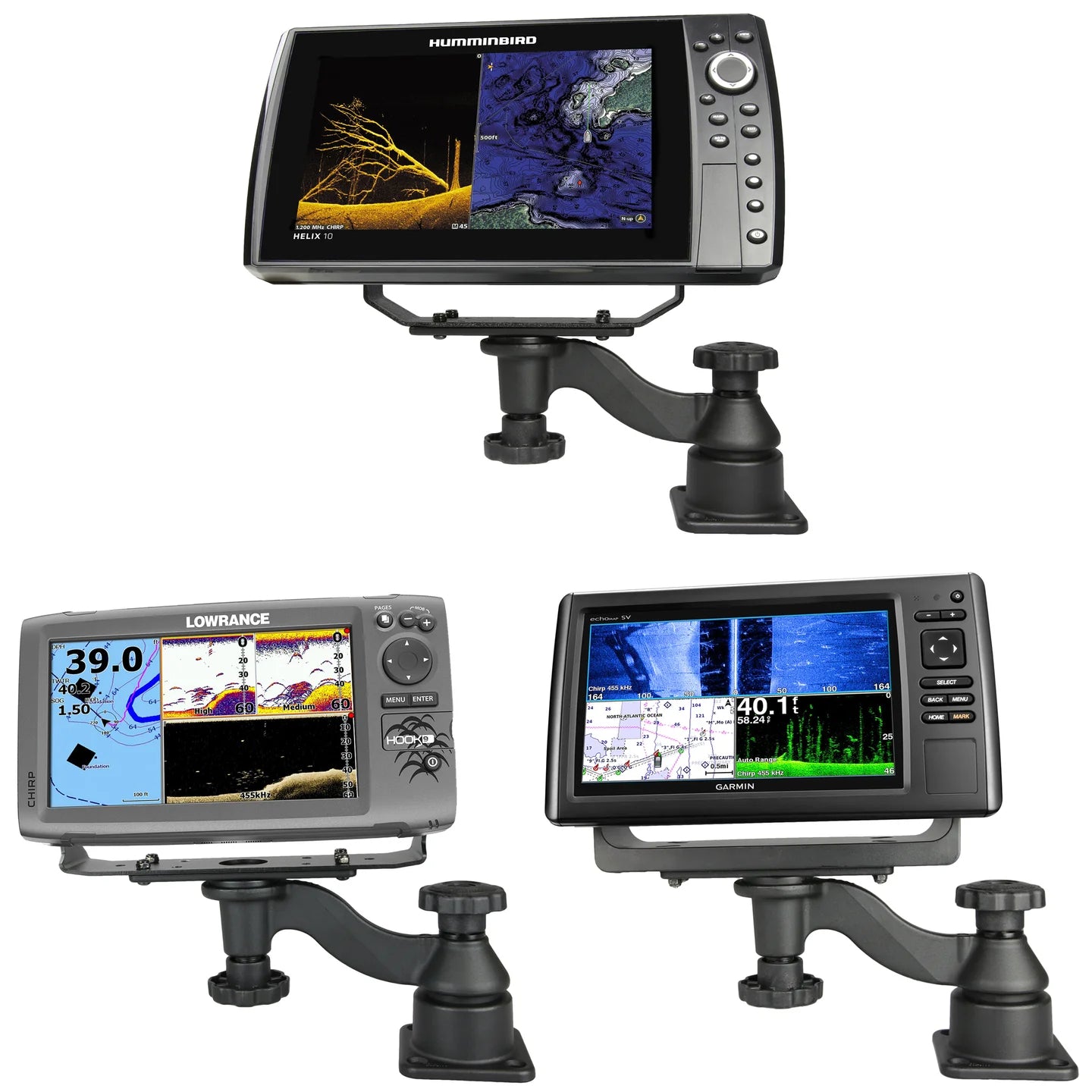

    • Compatible Devices: Garmin Fishfinders/Chartplotters Humminbird Fishfinders/Chartplotters Lowrance Fishfinders/Chartplotters Raymarine Fishfinders/Chartplotters Si-Tex Fishfinders and GPS Chartplotters
    • Note: The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
