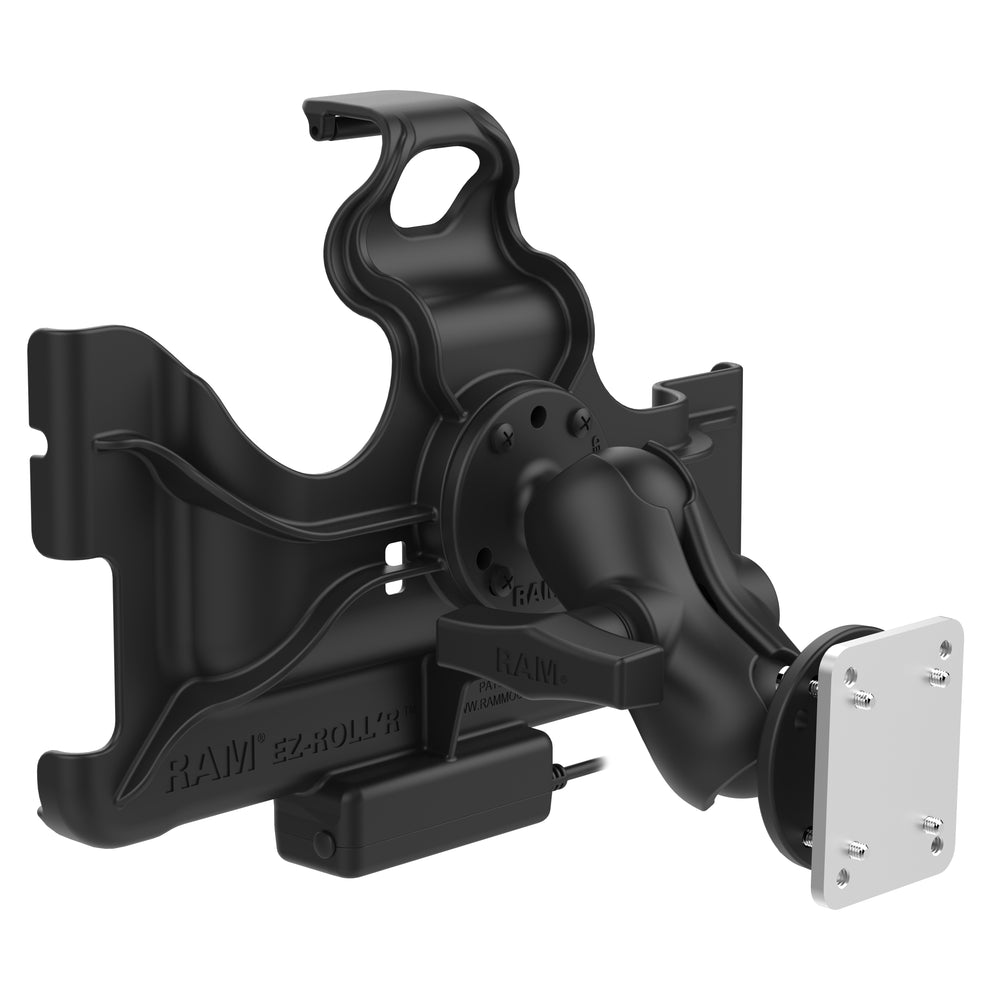

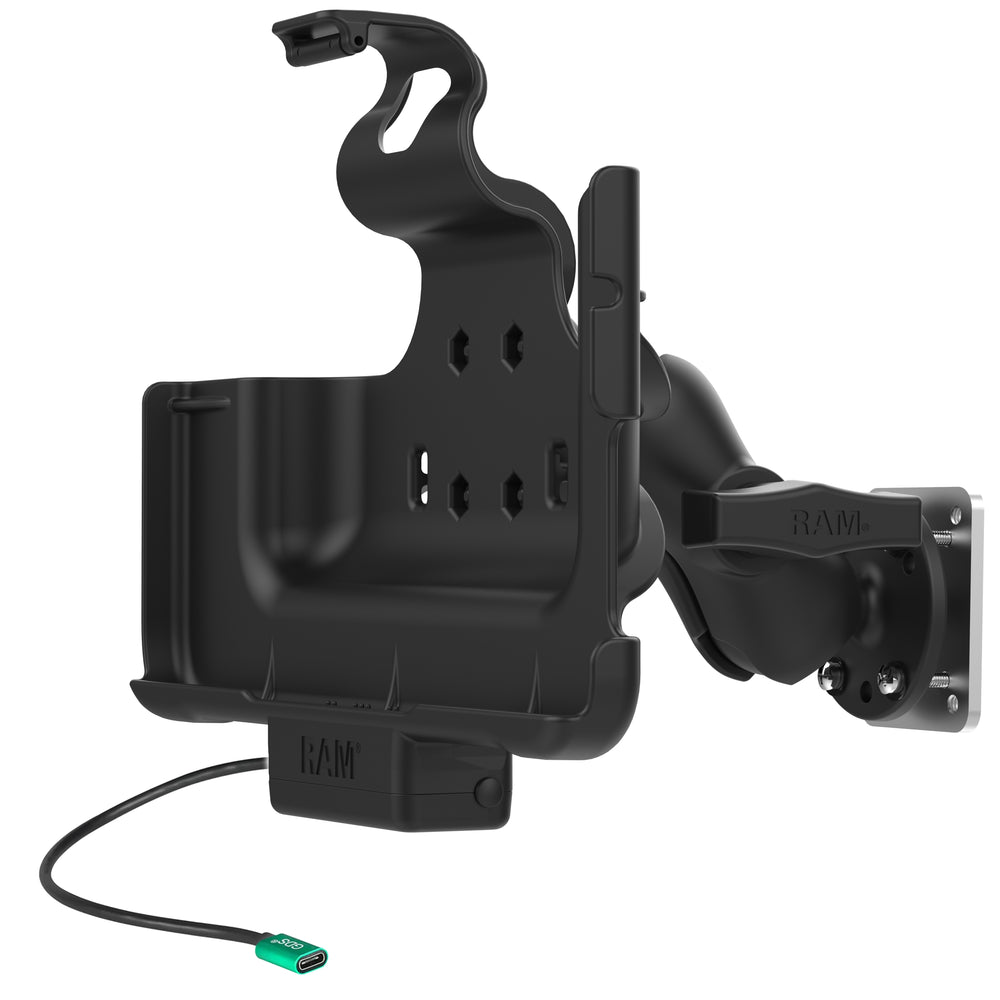

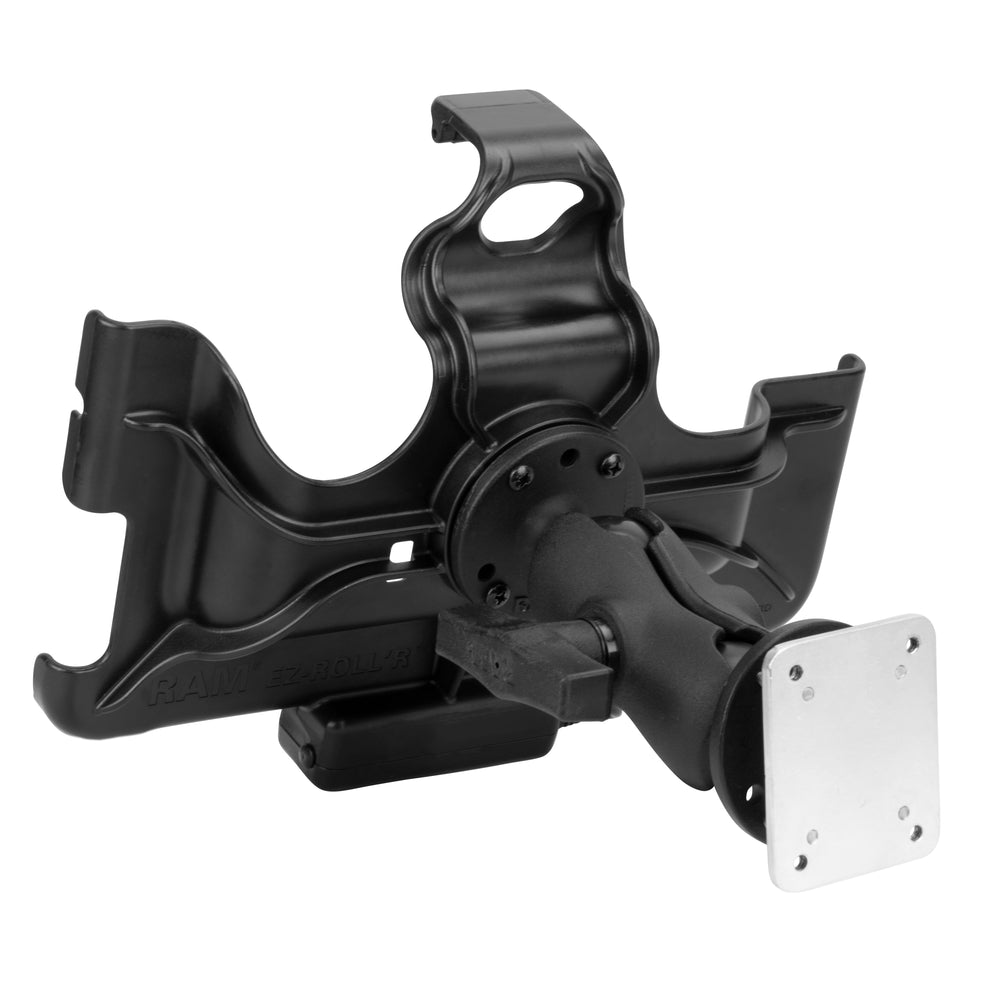

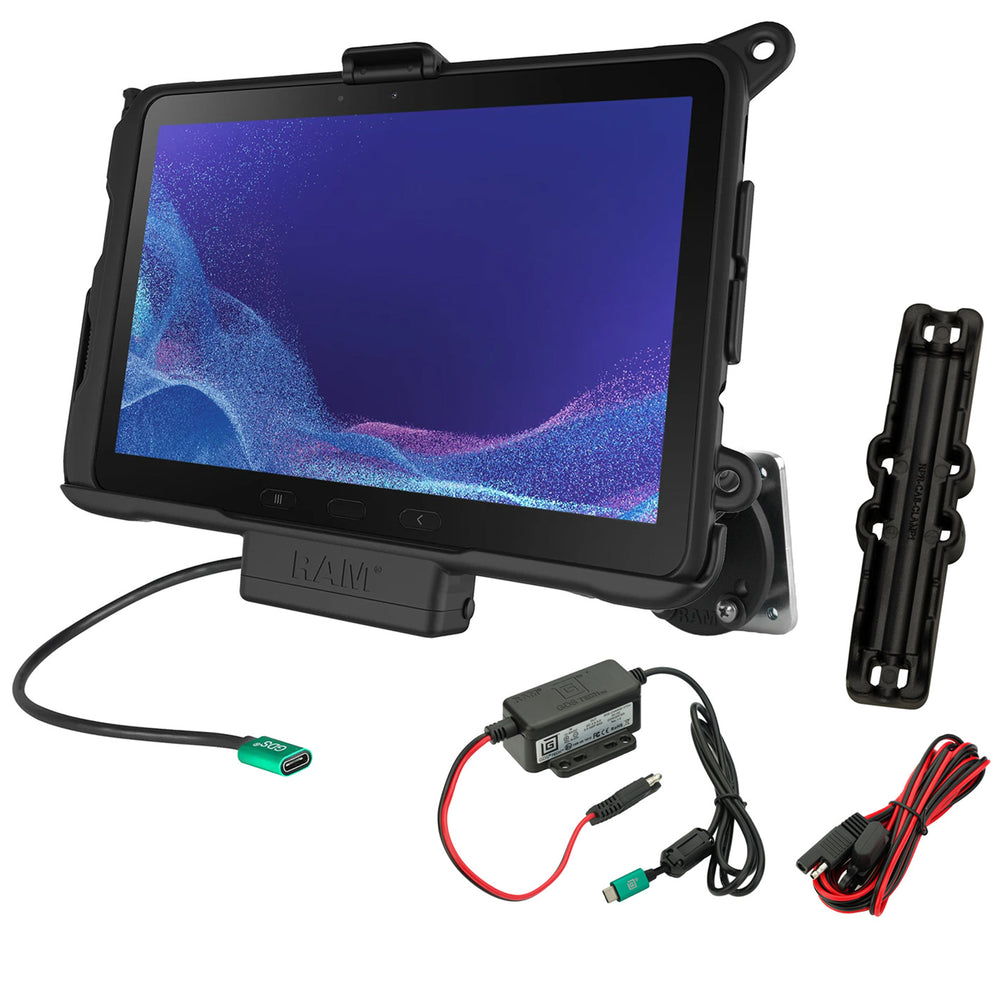

The RAM® Powered Dock & Dashboard Mount for Samsung Tab Active5 Pro (RAM-101-225B2-SAM52CP-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active Pro series in your fleet. It contains one RAM® USB-C Powered Dock, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device. The RAM® Powered Dock is backed by a 3-year warranty.
Features
Features

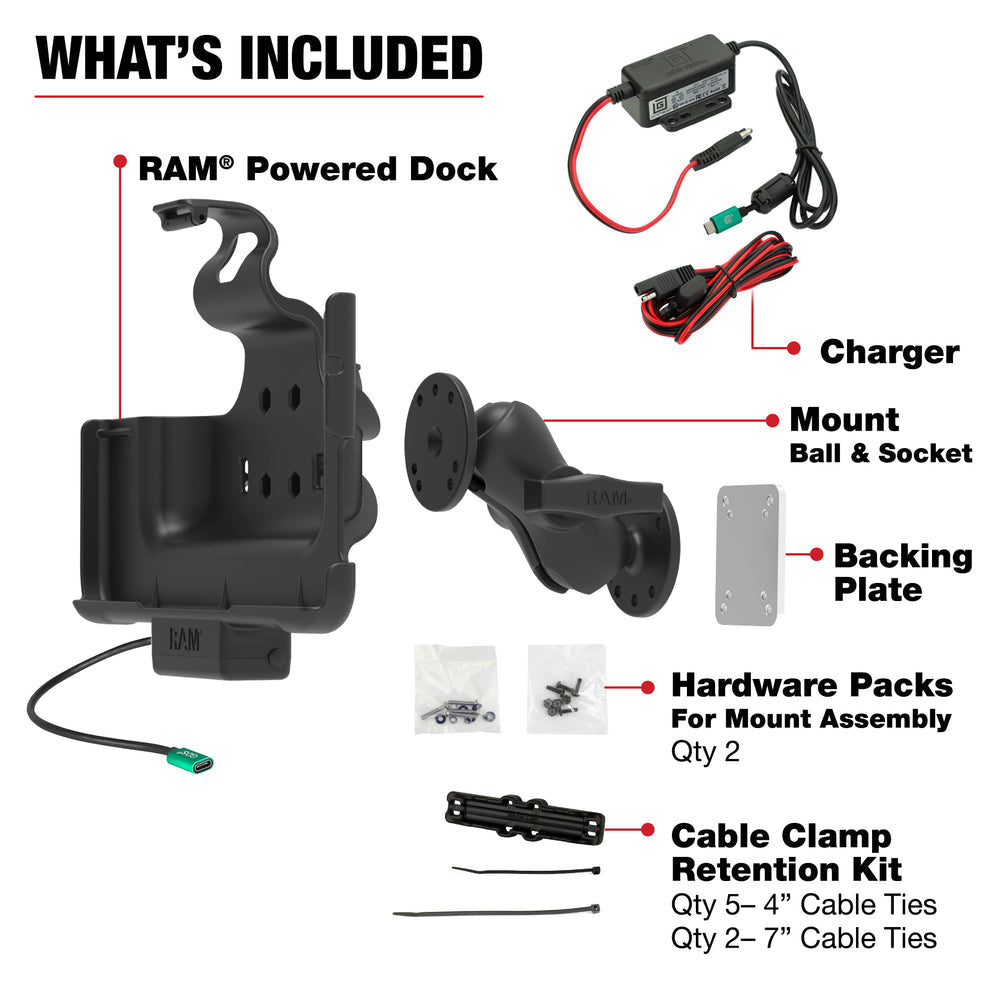

- Bundle includes RAM® USB-C Powered Dock and C-size double ball mount with medium arm, backing plate adapter, and cable clamp
- Powered dock designed specifically for Samsung Galaxy Tab Active4 Pro series with RAM® Skin™ or Samsung OEM case
- Next-generation charging via integrated pogo pin docking contacts aligned with Tab Active5 Pro pogo pads for secure, fumble-free charging and port protection
- Backed by a 3-year manufacturer warranty
Tech Specs
Tech Specs
- Hardware Included:
- Assembly Hardware
- (1) 2.10" x 2.60" Steel Backing Plate
- (4) #8-32 x 1" Screws
- (4) #8 Split Lock Washers
- (4) #8 Flat Washers
- (1) Cable Clamp
- (1) Hardwire Charger
- Socket to Socket Length: 3"
- Ball Size: C Size (1.5")
- Weight Capacity:
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
- Materials:
- Steel
- Marine-grade aluminum
- High strength composite
- Packaging Type: Poly Bag
- Input Voltage: 5.3-5.4VDC
- Output Voltage: 5VDC
- Power Output: 500mA
- Input Connector: USB Type-C Female
- Input Cable Length: 215mm
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Regulatory:
- Overvoltage/Load Dump Compliance: Meets SAE J-1113
- FCC, CE, UKCA, IC
- Certifications:
- E-Mark Certification
- Integrated Short Circuit Protection
- WEEE and RoHS Compliant
- USB 2.0 BC 1.2 DCP Support
- IEC/UL 62368-1
- Weight: 2.55 lb
Compatibility
Compatibility
- Samsung: Galaxy Tab Active Pro, Galaxy Tab Active4 Pro, Galaxy Tab Active5 Pro
Product Guides
Product Guides
Package Content
Package Content
- 1 x RAM® Powered Dock & Dashboard Mount for Samsung Tab Active5 Pro & 4 Pro (RAM-101-225B2-SAM52CP-V7CU)
