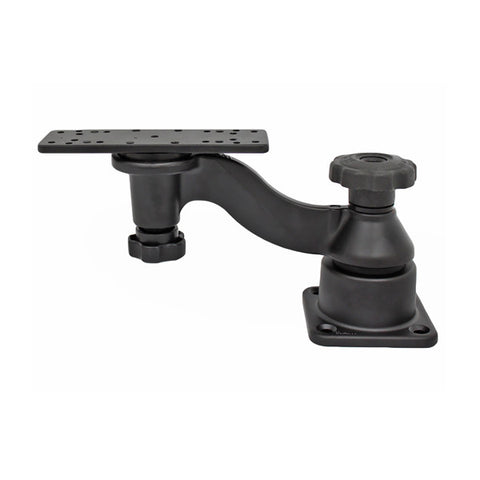

RAM Swing Arm with Rectangle Base & Horizontal Mount (RAM-109HU)
Specs & Features
- Weight Capacity: Up to 10 lbs.
- Dimensions: A. Center of knob to center of ball socket: 6"; B. Overall length of swing arm assembly: 10.75"; C. Overall height: 5.6"; D. Height from base to top of knob: 4.91"
- Material: Powder Coated Marine Grade Aluminum
- Weight: 2.09 lbs.

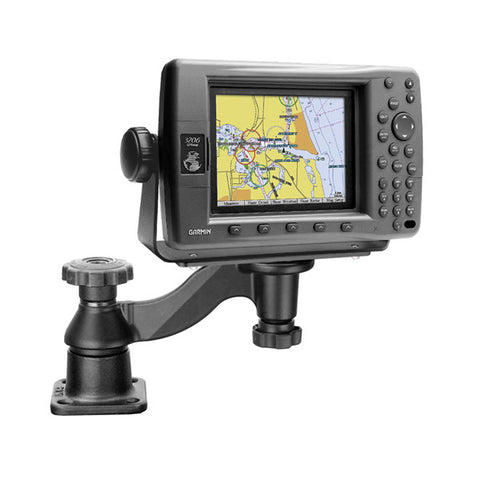

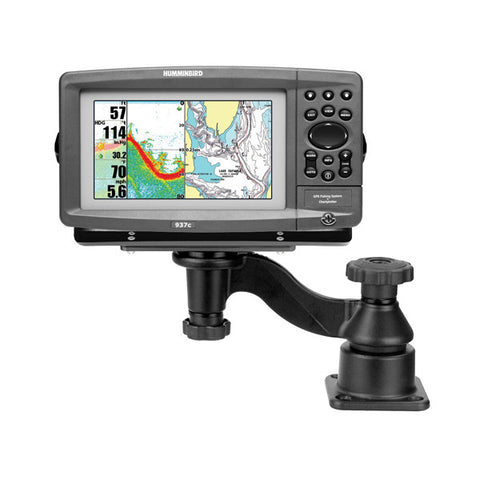

- Compatible Devices: Garmin Fishfinders/Chartplotters Humminbird Fishfinders/Chartplotters Lowrance Fishfinders/Chartplotters Raymarine Fishfinders/Chartplotters Si-Tex Fishfinders and GPS Chartplotters
- Note: The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
